Zero Breakage at Sea: Reading a Drop Test Report

Because a transit test report is not a statement about packaging quality in general. It is a statement about one specific pack, built one specific way, tested one specific way, on a stated number of samples. Change the carton grade, the flute, the cushioning material, the closure pattern or the product inside it, and the report stops describing what you are buying.

That distinction is where importers get hurt. The report says the packaging passed. The container arrives with damage. Both statements are true, because the pack that was tested and the pack that shipped were not the same pack — a lighter liner substituted in one run, a different insert depth, a different tape pattern on the bottom seam.

So the useful reading of a report is not 'did it pass', but 'what exactly passed, and is that what I am ordering'. The entire document exists to answer that question, which is why the blocks that look like boilerplate are the ones that matter.

Conditioning is the period before testing during which the sample is held at a specified temperature and relative humidity — commonly around 23°C and 50 per cent relative humidity for a day, or a harsher regime where the destination demands it. It exists because the materials in a pack are affected by moisture: corrugated board loses a significant share of its compression strength as it takes on water, and cushioning materials change behaviour with temperature.

This is the most underrated block in a report. A pack tested dry and shipped across the equator was never tested in the condition it will actually be in at sea. Board strength is not a constant — it falls as humidity rises — so a report that records only the laboratory atmosphere has told you nothing about what the carton was doing on the water.

So the question is not whether conditioning happened, but which regime was used — and whether it corresponds to the route the goods will take. A report that names its conditioning parameters is telling you it takes the physics seriously.

Because damage accumulates. In real distribution a carton is dropped, dragged, stacked and transferred long before it spends weeks vibrating on a vessel. A protocol that vibrates the sample first and then drops it has the sequence backwards, and running it that way can hide the failure mode you were looking for.

The mechanism is cumulative damage. A pack that survives a corner drop as a fresh sample may fail the same impact after it has already absorbed the distortion and micro-cracking of a vibration cycle — and a protocol testing in the wrong order never creates that state.

There is a subtler version of the same problem: testing each orientation on a fresh sample rather than on the same sample in sequence. Each approach answers a different question. Fresh samples isolate a single impact; successive drops on one sample reveal progressive failure, which is what a container actually does. A good report states which one it used, and why.

Three orientations, three different stress states — and a report that documents only one of them has tested a third of the problem.

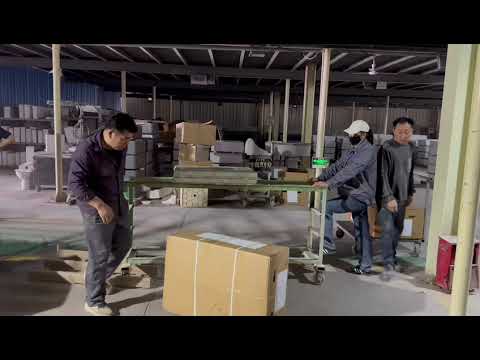

A face drop lands on the largest flat surface: the top, the bottom or a side panel. Force spreads across a wide area, so it tests panel integrity and the strength of the closure. An edge drop lands on the intersection where two faces meet, concentrating force along a line; this is what stresses score lines and corner joints. A corner drop lands where three faces converge, and energy concentrates on the smallest contact area of the three, producing the most severe localized stress.

For a carton protecting a fragile, heavy ceramic body, the corner drop is normally the worst case. Which is precisely why a drop schedule heavy on faces and light on corners will look better than the pack deserves — and why the schedule is worth reading in full rather than skimming for the word 'pass'.

Three to five units is the range that makes a result defensible. A single-sample test carries inherent variability risk: packaging materials vary, closures vary, and one sample cannot distinguish a design that works from a design that happened to work.

The companion question is whether all the samples were built identically. If one test article had a deeper insert or a different tape pattern, the samples were not comparable to each other, and the report's internal consistency is broken before it says anything about your product.

This is where a buyer's own specification pays off. If your purchase order names the carton grade, the flute, the insert and the closure, the report can be checked against those lines directly — and any substitution becomes visible instead of invisible.

Both are legitimate, and they answer different questions. An instrumented test mounts accelerometers on the package or the product and records peak acceleration and the duration of the shock pulse. That gives a number you can hold against the fragility limit established for the product: if the recorded peak sits above the limit the product was validated to, the pack failed to protect it, regardless of how intact everything looked afterwards.

A visual-only report documents the outcome through photographs and a checklist, and it is perfectly usable — provided it states what it means by damage. Cosmetic marking, structural failure and functional impairment are three different verdicts, and a report that does not separate them, or does not say who performed the inspection, is not comparable with anything.

Neither method removes the need for the configuration section. If the report does not name the materials it tested, it is development data rather than qualification evidence.

Because a pass is meaningless without the conditions attached to it. One pack can be signed off against a drop height and an instrumented acceleration threshold; another can be signed off from a lower height with nothing but a visual check. Both reports say 'pass'. Neither tells you which pack is better, and comparing them is not a comparison at all.

The rule that makes reports comparable is that the method, the build and the success thresholds have to be identical. Which is why the useful procurement move is not to collect the most impressive-looking report, but to specify the protocol you want — drop heights, orientations, conditioning, sample count and acceptance criteria — and then ask every supplier to the same test.

That is also what makes a report transferable to your own customers. If a project buyer or a retailer asks for evidence, a report on a defined protocol answers the question; an unspecified 'passed' invites the next one.

Six blocks, and a missing block is a downgrade rather than a formality. The practical test is simple: if the report does not state its acceptance criteria, you cannot know what 'pass' meant; and if it does not describe the configuration, you cannot know whether the pack you are buying was the pack that was tested.

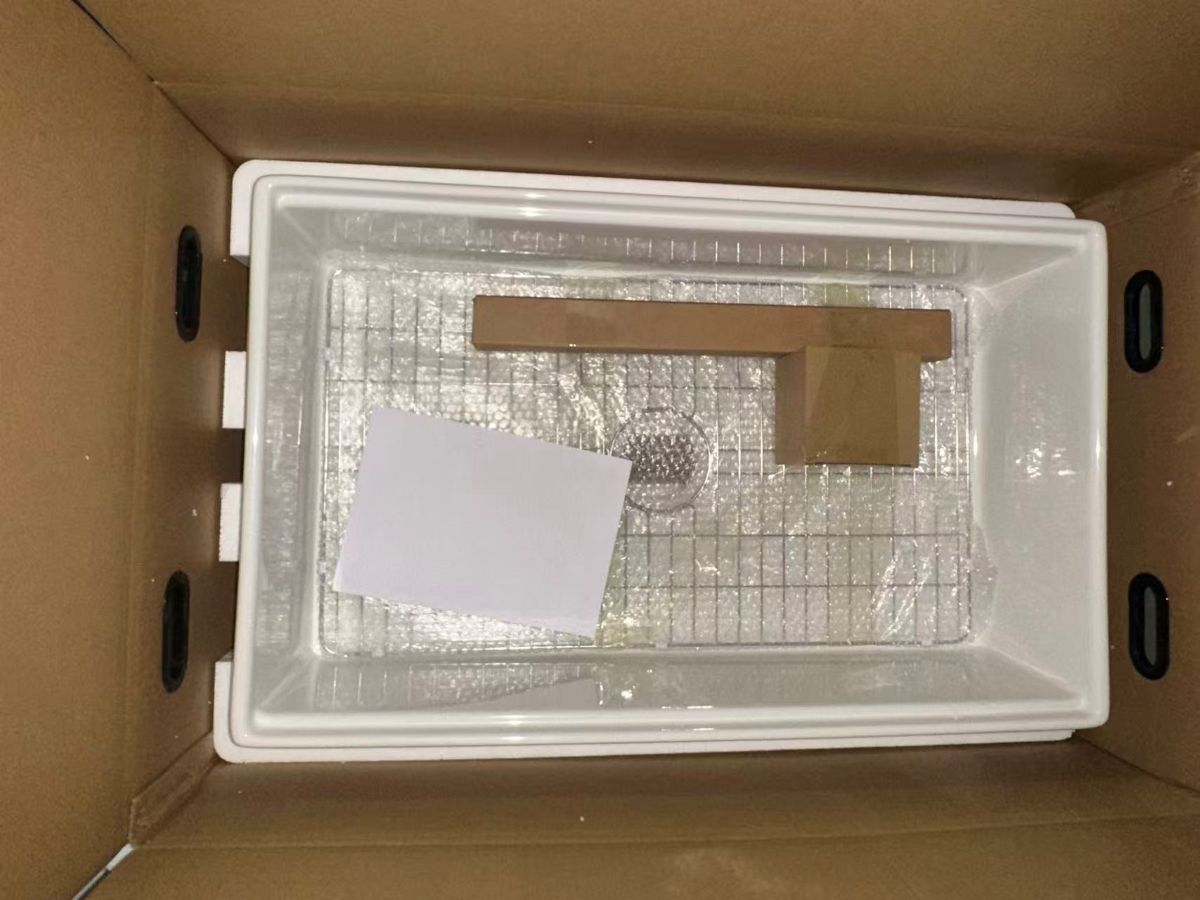

Seven things. Carton internal and external dimensions, because a nominal size is not a specification. Board grade and flute construction. The closure method and the tape pattern, because the way a carton is closed affects how its corners and edges perform under impact. The cushioning materials and inserts, with their type and density. Any void fill and partitions. Whether the product tested was the actual product or a surrogate. And the weight distribution and orientation of the product inside the pack.

A report that omits the material callouts has a specific meaning in the trade: it is development data, useful for comparing two of your own designs, but not qualification evidence for a supply agreement.

This is also the section that lets you catch substitution. If the drawing specifies a formed insert in a particular density and the report describes a cut block of a lighter one, then the report describes a pack that has never shipped.

More than a duration. A useful vibration report states whether the input was a sweep or a random spectrum, because the two find different things: a sweep identifies the resonant frequencies of the pack, while a random spectrum simulates the broadband shake of a vessel and a road. It should name the frequencies identified as critical, the intensity, the duration or number of cycles, and how many times the test was replicated.

It should also record the conditions around the test — atmospheric conditions before and during — the apparatus and instrumentation used including the date of last calibration, and photographs of how the sample was fixed to the table, because the constraint method changes the result.

Two lines in a good vibration report are worth more than the graphs. One states whether the damage produced in the laboratory replicates damage seen in the field. The other lists observations that could lead to a design improvement. Those two lines tell you the test was run to learn something rather than to file something.

Value it, because that is what you asked the test to find. A properly written report appends photographs of the failure and a recommendation: a higher-density cushioning material, a thicker pad at the contact point, a revised closure pattern, an additional insert.

A report where nothing failed and nothing was recommended deserves a second look. Either the pack has margin, which is possible, or the protocol was not demanding enough to find the limit — lower drops, fewer orientations, a gentler vibration profile. The failure to be suspicious of is the one that never appeared because nobody asked it to.

The sequence that produces confidence is straightforward: set a protocol, test a layout, see a failure, fix the design, test the corrected build. A single clean pass on the first attempt is not the same evidence as a documented iteration.

Against the packaging layout, not against the product range, and against the models that layout serves. The layout is the thing that was tested, so any change to it retires the evidence — which is why a new layout for a new model should be validated before it enters serial production rather than after it has shipped.

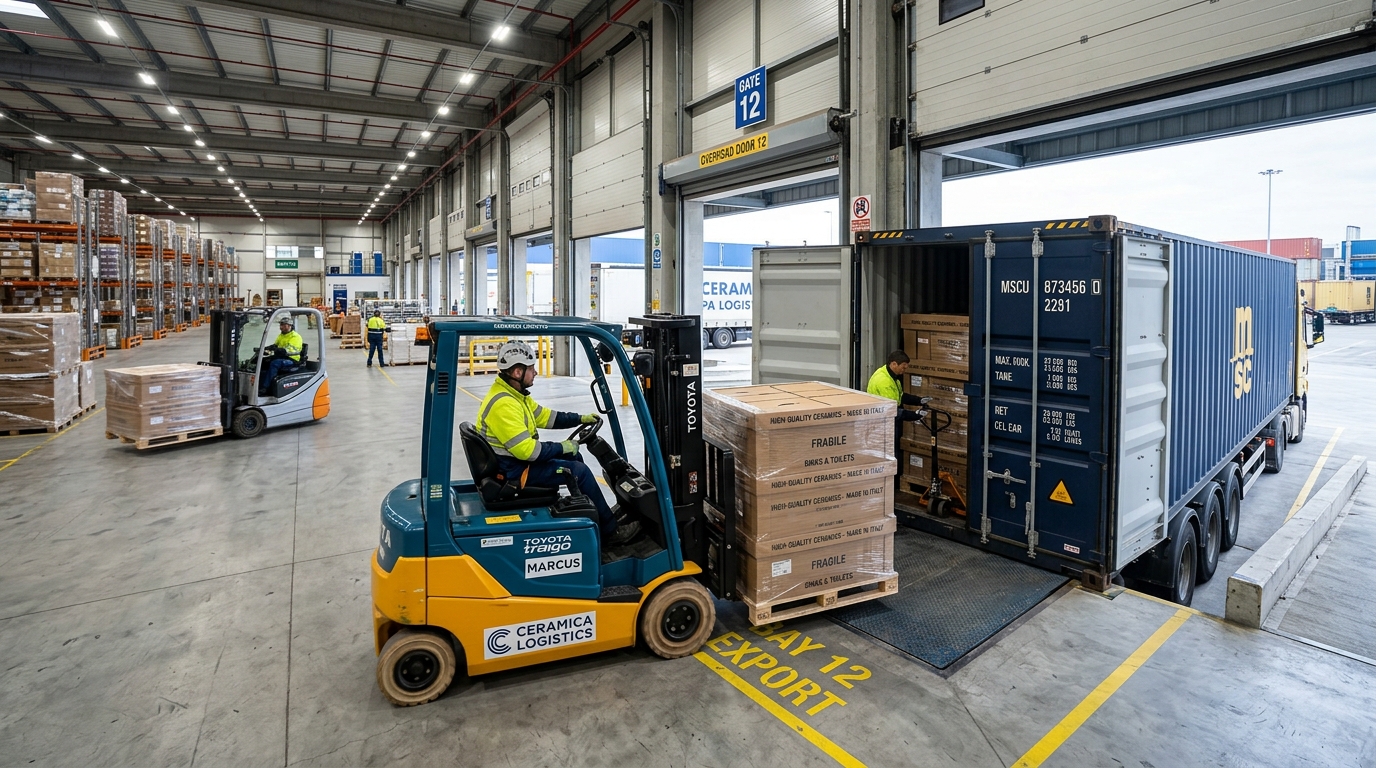

The file should also carry the packaging drawing the report refers to, and photographs of the packed and loaded pallet taken with the carton label visible. Those photographs are what connect a test result to the carton that arrived, and they are the difference between a claim that can be answered and a claim that has to be argued.

For a buyer, the practical request is one line: send the report, the drawing it refers to, and the loading photographs. A supplier who can produce all three has a packaging process; a supplier who cannot has a packaging habit.

Does a passed report mean my containers will arrive intact? It means that pack, tested that way, survived the protocol. Damage in the field usually traces back to a substitution, a different layout, or a failure mode the protocol never exercised.

Should I ask for the raw data or just the summary? The summary is enough to qualify a pack if it states the method, the configuration, the sample count and the criteria. Raw data matters when you are engineering a change yourself.

Why do I need three to five samples? Because packaging varies. One unit cannot separate a design that works from one that got lucky.

What does conditioning have to do with anything? Board and cushioning change with moisture and temperature. A pack tested in a dry lab has not been tested in the state it will be in after two weeks at sea.

Which orientations should I insist on? All three, with corner drops counted properly — that is where energy concentrates on the smallest area and where a fragile ceramic body usually fails first.

Can I reuse a supplier's existing report for a new order? Only if the packaging layout, the materials and the models are unchanged. Any change to the pack retires the evidence.

How do I compare two suppliers? Specify one protocol and ask both to it. Comparing two reports run differently tells you nothing except that both used the word 'pass'.

What is the cheapest insurance in export packaging? Reading the configuration and acceptance-criteria blocks before accepting the report, and keeping the packaging drawing with the file.
