Fireclay vs Cast Iron vs Quartz: How They Fail

Every sink material on the market fails. The useful question is not which one is strongest — that is a marketing question — but what goes wrong, how soon, and how visible it is when it does. Steel dents. Enamel chips, and then the iron underneath rusts. Fired clay chips or cracks. Resin-bound composite films over, dulls, and cannot hide a chip. Pick the failure you can live with and the sourcing decision mostly makes itself.

This matters more in distribution than in retail. A distributor carries the warranty cost, the installer's second visit, and the phone call from a customer who has had the sink for two years. A material that fails visibly ten years in is a better commercial neighbour than one that fails quietly at eighteen months.

So this comparison is organised around that: what each of the three materials is, how it fails, what it costs you in cabinet work and freight, and how to tell a supplier who controls the process from one who is hoping. Where a claim comes from published industry practice rather than from our own testing, we say so.

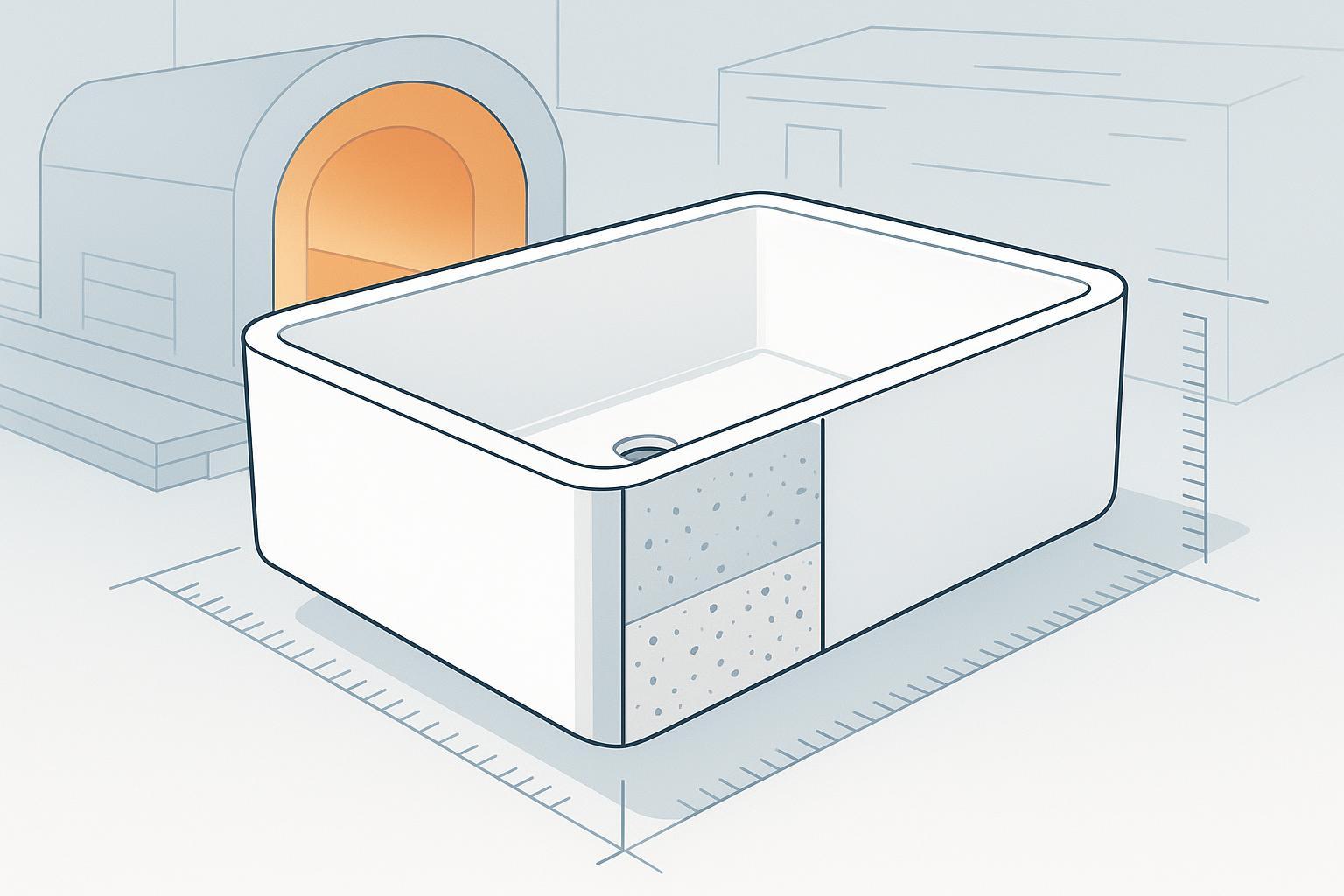

A fireclay sink starts as a clay body with very little flux in it, which is what lets it hold its shape as the kiln approaches peak temperature instead of softening into whatever gravity wants. TAITAO fires its fireclay and vitreous china bodies through a 96-metre tunnel kiln between 1200°C and 1280°C, and the glaze is applied and matured in the same firing.

That last part is the whole technical point, and it is where most comparisons get the material wrong. The fired clay body of a fireclay sink is not the part that keeps water out. The glaze — fused to the body in the kiln, not laid on top of it afterwards — is what forms the working surface. If you read comparison pages that describe fireclay as 'zero porosity through the body', be sceptical: the honest description is a ceramic body with a glaze that is chemically and thermally bonded to it.

The practical consequence for a buyer is simple. There is no separate layer to delaminate, peel, blister or lift, because there is no separate layer. Damage to a fireclay sink is damage to one finished ceramic object, not a coating that has come away from what it was protecting.

An enameled cast iron sink is an iron casting with a porcelain enamel coat fired onto it. The core is extremely rigid and takes impact that would dent thin metal; it also holds heat well, which is genuinely pleasant for washing up. It is the heaviest option in this comparison, and it needs a braced cabinet.

The failure is specific and predictable. A dropped pot or a heavy utensil hit on the rim chips the enamel. That chip exposes iron. Iron in a wet environment rusts, and because rust occupies more volume than the metal it replaced, it pushes the surrounding enamel away from the surface. What starts as a small chip becomes a spreading patch. Trade guides describe the same sequence, and they are consistent about the cause: the enamel is the vulnerable part, not the iron.

A second, quieter failure comes from heat. An enamel coat and its iron substrate expand at different rates, so repeated extreme temperature swings can craze the surface even without any impact. Once crazed, the coating is harder to keep clean and the clock on corrosion starts earlier.

None of that makes it a bad product. It makes it a product whose service life is decided by how well the coating is protected — during transit, during installation, and in daily use. If the programme cannot guarantee careful handling on site, the failure mode is being chosen for you.

A quartz or granite composite sink is roughly eighty per cent crushed stone bound in about twenty per cent acrylic resin, moulded solid. It is non-porous at the surface, warm to the touch, and by a wide margin the quietest of the three: the dense stone content absorbs the impact noise that makes thin metal basins ring. Matte finishes hide water spotting better than any glossy surface, and the colour range is the widest of the three.

The trade-offs are equally specific. The resin binder is the weak component. Highly pigmented liquids — red wine, coffee, tomato, turmeric — can stain a composite surface if they are left standing, which is why the better products specify a hydrophobic surface treatment and why every care guide says wipe it up rather than leave it. On darker colours, hard water leaves a chalky film that a glossy finish would have hidden less.

The other trap is damage repair. A composite chip is permanent. There is no colour-matched surface to blend it into the surrounding stone pattern, so a chip reads as a defect no matter how small it is. That is the opposite of how a colour-through ceramic behaves, and it is worth knowing before you decide which one your installer is more likely to damage.

Fireclay is the one that chips or cracks from impact. That is a real limitation and a preview of a comparison that pretends otherwise. What makes it tolerable is the failure's appearance: because the body and glaze are the same fired ceramic and a fireclay sink is colour-consistent through the material, a chip in a white body reads as a chip, not as a hole in a coating that shows what was underneath.

Enameled cast iron resists chipping better than its reputation in one direction and worse in another. A thick enamel coat takes everyday knocks without marking. But when it does go, the damage escalates, because the exposed iron is not inert. Chipping is where cast iron stops being a cosmetic problem and becomes a corrosion problem.

Quartz composite rarely chips, and that is its best property. Its weakness is the slow change rather than the sudden one: dulling, film, and occasional staining on lighter colours. Nothing breaks; the surface simply stops looking new, and unlike a ceramic chip there is no polishing it back.

Yes, and in three places at once. The cabinet has to carry the sink plus water plus whatever is in the basin. The installer has to lift the sink into place without chipping it. And the freight cost per unit tracks mass, which is why a heavier material quietly costs more in every container you ship, not just the first one.

Our own fireclay sinks run 25 to 54 kg empty depending on size and wall section, which is why we publish net weight per model rather than a single marketing figure. An enameled cast iron body in the same format sits heavier again, and it is heavy in a way the cabinet feels rather than the freight forwarder alone.

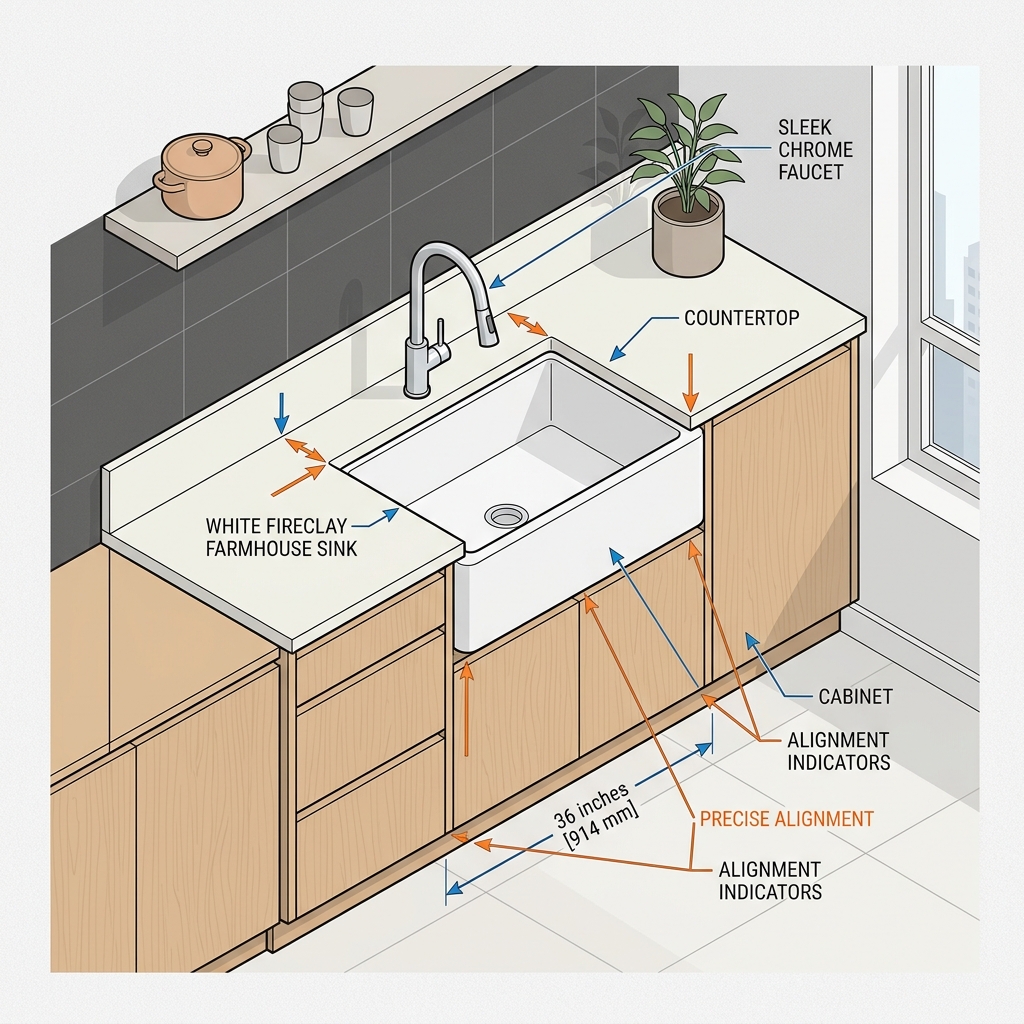

The installation rule is the same for both ceramics and it is the one most often skipped: the weight must land on a level cradle or a ledger fixed inside the base cabinet. Hanging a heavy fired sink from the worktop, or trusting the caulk line to hold it, is how a sink cracks in its first year of service — and the crack appears where the load concentrated, not where the sink was lifted.

Fireclay takes direct contact with hot cookware: the glaze and body are one material with similar expansion behaviour, and the fused surface has no layer to blister. It is not indestructible — a rapid extreme temperature change is always the hard case, so running the tap while pouring a boil is still the sensible habit — but a hot pan set down in the basin is not the event that kills a fireclay sink.

Enameled cast iron is somewhere behind that. The iron core is thermally stable, but the enamel coat is not the same material as what it sits on, and repeated temperature swings can craze it. A consumer guide sums it up bluntly: the iron is fine, the coating is the part that suffers.

Composite has a lower ceiling than either ceramic because the binder is a resin. Published heat limits for stone composites sit well below the temperatures a ceramic body sees in a kiln, and above that limit the risk is discolouration rather than breakage. In practice, that means a trivet habit is a reasonable ask of a composite owner and an unnecessary one for a fireclay owner.

Composite staining is not a myth and not a certainty. It depends on two things: whether the surface carries a hydrophobic treatment, and how long the spill sits. Pigmented liquids left overnight are the risk case. Wiped within a reasonable time, most composites come clean, which is why the material has earned its reputation for low maintenance.

Fireclay marking is a different phenomenon and frequently misdiagnosed. Silver or grey lines left by cutlery and cookware are usually metal transfer — a thin film of metal sitting on the glaze, not a scratch through it — and they clean off with a mild non-scouring cleanser. Hard water leaves a mineral film that dulls a gloss finish and also comes off. Neither is damage, and both are routinely reported as damage by people who have not been told the difference.

That distinction is worth passing to your own customers, because it turns a service call into an email. It is also the reason a fireclay spec should always ship with a one-line care note that says what not to do: no steel wool, no scouring powder, no leaving acid sitting in the basin.

A fired ceramic sink after ten years typically looks like a ten-year-old sink. It may carry fine metal marks that clean off, a slight loss of gloss under a hard-water regime, or crazing — a web of hairline lines inside the glaze with an intact body underneath. Crazing is usually cosmetic and cannot be polished out; it matters only if a line catches a fingernail or weeps, which is a structural question rather than a glaze one.

An enameled cast iron sink after ten years is either nearly perfect or has a rust history. There is rarely a middle state, because the enamel either stayed intact or it did not, and a single chip tends to become a spreading patch. This is the material whose long-term appearance depends most on handling rather than on care.

A composite sink after ten years is usually intact and slightly faded in the way a matte surface fades. It will not have chipped, and it may carry a light film near the drain where water sat. In years-used terms it is the most predictable of the three; in peak appearance it is also the furthest from new.

Treat them as three different jobs rather than three versions of one job. Stainless steel remains the volume default for entry-level programmes. Quartz composite answers the buyer who wants colour, quiet and a matte surface that hides water spots. Enameled cast iron answers the heritage look with the heaviest, glossiest feel. Fireclay answers the programme where the surface itself is the specification: the farmhouse and workstation tiers, and projects where the sink is part of the design language.

Two structural choices help you cover more of that range without multiplying stock. A reversible apron sink — fluted on one face, smooth on the other — serves two kitchen styles from a single line item, which reduces what a distributor holds and what a showroom has to display. A workstation ledge with an integrated track turns the sink into a prep surface, at the cost of roughly one and a half to two inches of bowl width per side; that trade is worth making in a narrow kitchen and not worth making in a wide one.

The third lever is colour. If you resell rather than install, buy colour consistency, not just colour range: the pain is not the first order, it is the replacement unit two years later that does not match what the customer already has.

First, they read the marketing material name as a material. A porcelain kitchen sink, in most of what a customer will read, is enamel over cast iron or steel, which behaves nothing like a fired ceramic body. If your specification does not say fused ceramic, the conversation is already off course.

Second, they assume one certificate covers a range. Certification is model and market specific, and a document that covers one model does not automatically extend to its neighbour, let alone to a custom configuration. Ask for the scope and check the model numbers against your purchase order.

Third, they compare weights and conclude that heavier means stronger. It does not. It means heavier — more to lift, more to brace, more to pay for in freight, and a higher chance of transit damage if the carton was designed around a lighter product.

Fourth, they compare the materials and forget the cabinet. A level cradle, a drain flange tightened to a torque rather than to a feeling, and a countertop templated after the sink arrives prevent more failures than any material choice. We have seen the same star-of-cracks failure from an over-tightened drain on every one of these materials.

Fifth, they buy on the sample and lose on the batch. A hand-finished presentation sample is not a production piece. The questions that predict trouble are about batch behaviour: colour against the approved sample, dimensions measured on fired pieces, and records tied to a batch number so a claim can be traced.

Ask for the failure-mode statement first. A supplier who has thought about this will tell you what their product does badly, in one sentence, without prompting. A supplier who claims no failure mode has either not tested or is not planning to be around for the claim.

Then ask for four things, all of which are cheap to produce and hard to fake. Fired water absorption for the current firing, measured against an agreed figure. Fired shrinkage as a range with its spread, taken across recent batches of the same size. Dimensional checks on fired pieces with the measuring points marked on rim, apron and drain. And colour measured against the approved sample rather than judged by eye in different lighting.

Finally, ask what happens when something is wrong. Defects found at inspection should trigger a written choice — rework, replacement, or acceptance with a credit — and the cost of re-inspection and return freight should be settled before you sign, not after. That single paragraph in a supply agreement decides whether a bad batch is an incident or a dispute.

Start with the cabinet, because it decides what you can install at all. Then decide the failure mode you can live with, then the look. In practice, a 9 to 10 inch bowl depth covers stockpots and sheet pans without making the bottom hard to reach, and a rear-set drain moves the plumbing back so the space directly under the basin stays usable for a disposal or for storage.

Check the slope toward the drain on any flat-bottomed design. A minimum gradient of about two degrees is what stops water pooling after the plug is pulled — and on a hand-formed ceramic body, pooling is a characteristic of the design rather than a defect, so it is worth confirming before you commit to a container rather than after.

Confirm three numbers before anything is cut: bowl width, cabinet opening, and the clearance behind the bowl for the trap and supply. Take the apron allowance from that model's rough-in drawing rather than from a rule of thumb; a fired piece carries normal dimensional tolerance and the drawing is a target, not a promise.

Which of the three lasts longest? In service-life terms, industry guides put enameled cast iron at the top of the range when the coating survives, and fireclay and composite in a similar band below it. The honest answer is that coating survival, not material choice, decides the outcome — and that is a handling question as much as a product question.

Which is quietest? Quartz composite, by a wide margin, because the stone content absorbs impact noise. Both ceramics are quieter than thin metal and noticeably quieter than a thin-gauge basin without damping pads.

Which is easiest to keep clean? Fireclay and composite are both non-porous at the working surface. Composite asks less effort with water spotting; fireclay asks that you never use an abrasive, and rewards that with a surface that can be wiped back to new.

Which one will my installer damage? If a sink is dropped or hit on an exposed edge, all three can be damaged, and the difference is what the damage looks like afterwards. A composite chip is permanent and visible; an enamel chip starts a corrosion process; a fireclay chip is a localised blemish on a colour-through body.

Do they all need cabinet support? The two ceramics do, without exception. Composite is lighter but still benefits from a solid, level base, because the same uneven support that cracks a ceramic body will eventually stress a resin matrix too.

Is a heavier sink stronger? No. Weight is a cost and a handling risk. Strength is a function of wall section, firing and glaze fit, and those are things you verify with reports rather than with a scale.

Can I stock all three? Most distributors do, because the three answer different commercial tiers and different design briefs. The one structural trick that reduces the count is choosing reversible-apron models so a single SKU covers two looks.

What should I ask for first? The failure-mode statement, the fired-check reports, and the certificate scope. If a supplier can produce all three quickly, the rest of the conversation is about logistics rather than trust.
