How Seasonal Humidity Affects Fireclay Quality

A cast ceramic body is not a solid object. It is a wet matrix of clay particles holding water in two places at once — between the particles, and inside the clay lattice itself. Every defect that appears after firing can be traced back to how that water left the body before it reached the kiln.

The physics is easy to state and hard to control. Water evaporates from the surface inward, so the surface of a freshly demoulded sink always dries faster than the core it is attached to. The surface therefore shrinks first. The core resists. The stress that builds across that gradient is where cracks begin, and it propagates from there.

Heat transfer into the body makes it worse rather than better. Convective drying follows a simple relationship — the drying rate rises with air temperature, with air speed, and with the contact area between them — which means that warming the room or opening the doors speeds up drying at the surface only. The core does not keep up. In practice, the fastest way to crack a wide, thin-walled sink is to dry it quickly.

Not one big force, but a local concentration of a small one. When the drying rate varies across a piece — because one face is in a draught, because the wall is thinner at a rim, because a sharp internal corner concentrates stress — the shrinkage follows the same pattern. A crack forms where the difference is greatest and then travels along the gradient.

That is why large-format pieces fail first, and why they fail at the rim. A 36-inch apron sink has a long thin edge with almost no material to absorb a differential, and it has the largest surface area in the room to lose water from. A small basin has the same physics with a fraction of the exposure.

It is also why drying and forming cannot be judged separately. A body with an uneven wall section will dry unevenly no matter how good the drying hall is, which is the reason wall thickness uniformity keeps coming up as the single most useful thing to measure about a supplier.

Because humidity sets the rate at which the surface can give up water, and the surface is the part that shrinks first. Temperature tells you how much energy is available; relative humidity tells you how much of it turns into evaporation.

In a dry, windy week the surface sheds water far faster than moisture can migrate out from the core. The result is a set of failure modes that all look like the same event — hairline fissures, splits along a joint, and rim distortion on pieces that were dimensionally perfect when they left the mould.

A humid week produces the mirror image and is in some ways more dangerous, because nothing looks wrong. Water leaves slowly, the bodies stay soft for longer after demoulding, and a piece that appears sound can still be holding moisture when it goes into the kiln. That water has nowhere to go but out, and it does so as steam.

It turns to steam, and steam occupies a far greater volume than the water it came from. Inside a closed ceramic wall, that expansion has only one escape route: through the material. What comes out is a blowout, a field of pinholes on an otherwise perfect surface, or an internal defect that is invisible until the piece fails in service.

This is why a moisture limit before firing is not a formality. A green body should be measured — not estimated by eye or by feel — against a stated residual-moisture threshold before it is loaded. The useful follow-up question for a buyer is not whether such a limit exists on paper, but whether it is checked per piece or per batch, and what happens to a body that fails it.

It is also the reason an under-dried piece is worse than an obviously defective one. A cracked green body gets rejected at a stage where rejection costs almost nothing. A wet green body goes into the kiln looking fine and destroys itself at the most expensive point in the process.

First, slow the rate down deliberately. Lower air temperature and lower air speed across the piece, and bring the room down in humidity gradually rather than opening a door. Fast drying is not a production win; it is a transfer of cost from the drying hall to the scrap bin.

Second, design the differential out of the body. Uniform wall thickness and the avoidance of sharp internal corners reduce stress concentration before the piece is ever cast. This is a tooling decision, not a drying decision, and it is the lever that a buyer can actually see the results of in a wall-thickness report.

Third, dry in stages. An initial slow stage removes the bulk of the water at a gentle rate, then the temperature is raised for the remainder. A single fixed cycle from wet to dry is the classic cause of a season-dependent reject rate.

Fourth, measure and adjust continuously. Temperature and relative humidity have to be monitored through the cycle and the parameters adjusted in response, because the room is not the only variable — the weather outside it changes the load on the system. A drying hall with a fixed programme and no feedback loop is an uncontrolled process wearing a control panel.

It is worth knowing what a disciplined fireclay schedule contains, because it explains why a lean version of it is a warning sign. A published European hand-made schedule runs over roughly three weeks, and almost none of that time is forming.

The mould itself is prepared first: plaster is poured by hand, the mould air-dries, is fettled and finished, and then spends a long conditioning period — on the order of sixty hours — in a dedicated room before it is fit to use. The clay is blended in two stages with a rest of about a day between them. Casting, fettling and marking take a few days, followed by a day of air drying, then two days in a drying room at around ninety degrees Celsius. Glazing comes next: a base layer, a rest of twelve to twenty-four hours, then a hand-sprayed second coat, with an inspection in between. Firing runs about two days with a further day of cooling, and the piece is inspected twice across the whole process — once before glazing and once after firing — with rejection on the smallest imperfection.

That schedule cannot be compressed without changing the product. Which means the practical question for a buyer is not how fast a supplier can make a large sink, but how they intend to shortcut the drying stage — and what they expect to happen to the reject rate when they do.

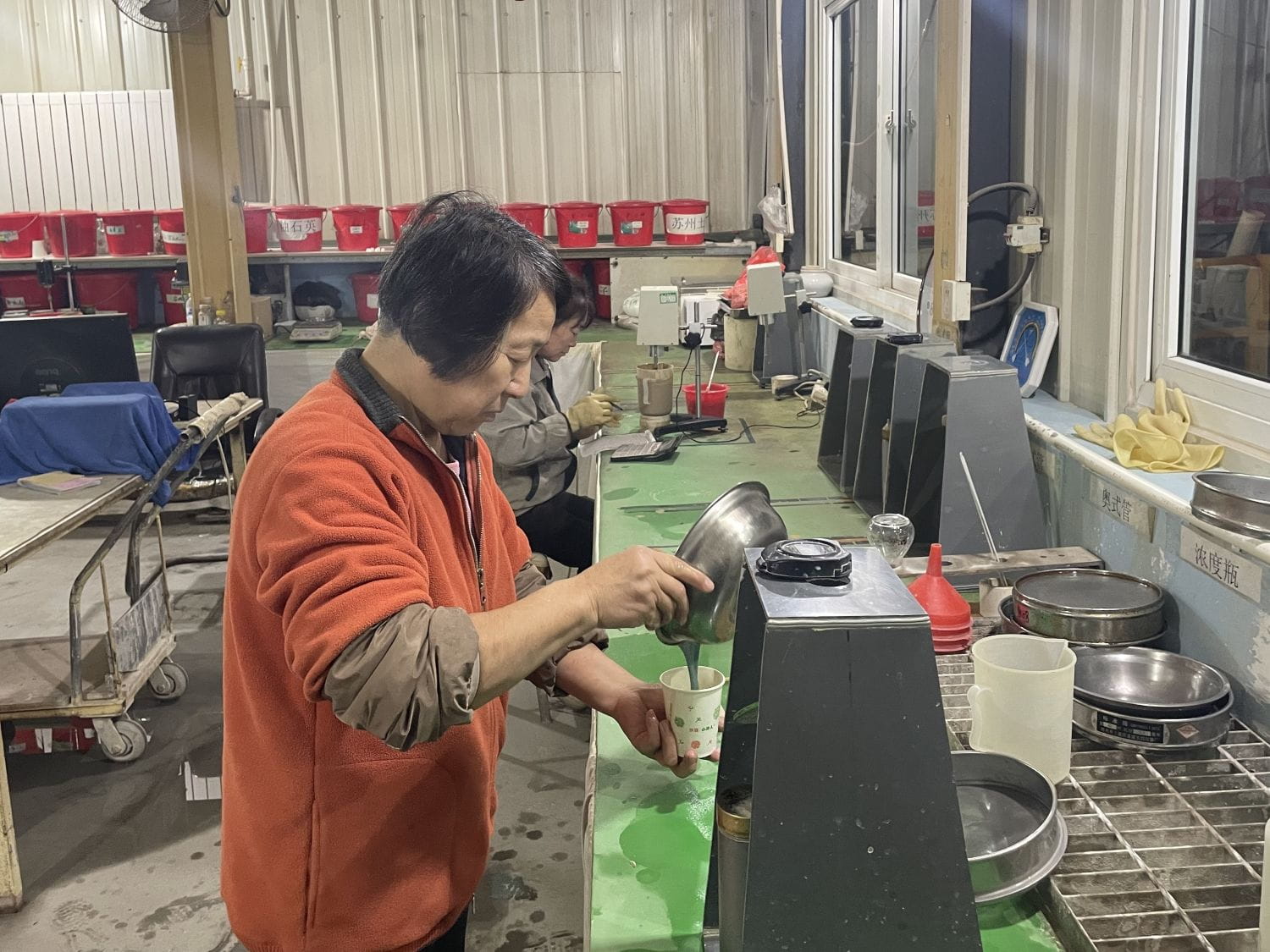

Because the water-to-solids ratio decides whether the body can be formed at all. Too much water and the piece deforms during and after moulding; too little and the slip will not fill the mould properly, leaving voids and incomplete sections that only become visible after firing.

Particle fineness and purity matter for the same reason. Coarse or inconsistent raw material produces a body whose drying behaviour varies from batch to batch, which then presents as a drying problem even though the cause was in the mixing stage. The rest periods are not tradition either: they let moisture equalise through the body so that the plasticity is consistent when the slip finally goes into the tool.

For a buyer, the useful translation is that 'we use good clay' is not a claim that can be checked, while 'these are our mixing records and our resting times' is.

At the finishing stage, and the reason is unexpectedly practical. After demoulding, a body is wiped down by hand with a wet cloth. The visible purpose is a smoother surface. The real purpose is diagnosis: a trained hand feels small particle protrusions, bubble marks and shallow depressions that no camera and no gauge is looking for, and the craftsman trims the raised areas and fills the voids.

Removing those small features is not cosmetic. Each one is a point where stress concentrates during drying and firing, and each one is therefore a place a crack can start. A piece that leaves the mould with a lump on a rim and an unfilled pinhole in a wall has already been given two future failure points.

The same stage is the first real quality gate. A defect found here costs a few minutes of labour. The same defect found after firing has already consumed the mould time, the drying time, the glaze and the kiln capacity.

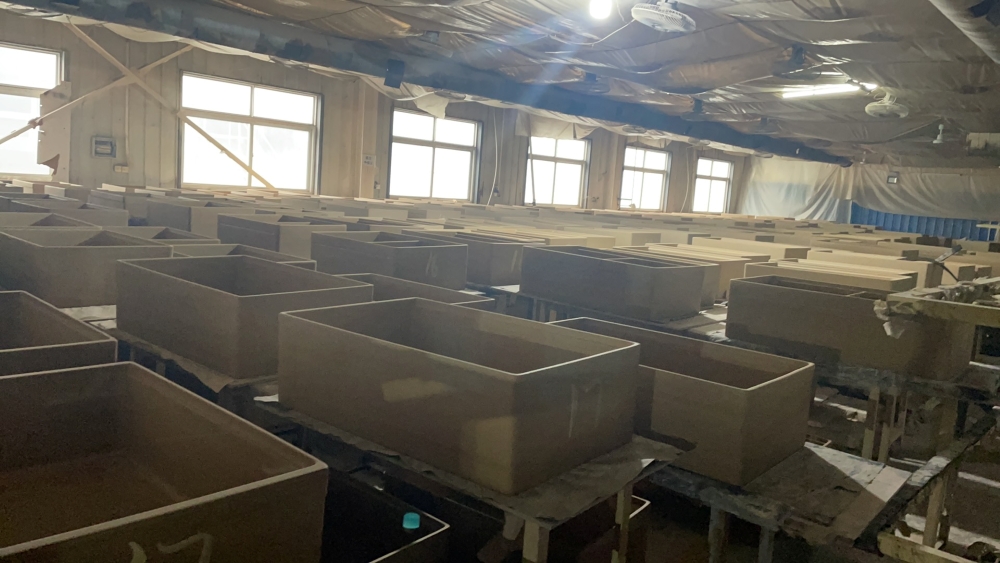

Tangshan has a warm-temperate continental monsoon climate with a pronounced four-season cycle. In our plant the workshop temperature moves by around 40°C between the coldest and the hottest weeks of the year, and indoor relative humidity by around 50 points, so the casting and drying halls are run against a season-specific set of targets rather than one fixed setting. The window below is the one we operate to.

Because autumn is the one period when the outdoor air is close to what the process wants. At roughly 15 to 25°C and 40 to 60 per cent relative humidity, the drying hall is doing very little work — no dehumidification, no humidification, no fighting a draught. Bodies dry at the rate the schedule expects without the system having to intervene.

That has a scheduling consequence that a buyer should understand when placing an order. Large-format pieces and tight-tolerance work belong in the stable window, because that is when the process has the most margin. A programme that has to be cast in the extremes of summer or winter can still be made well, but the drying hall is carrying more of the load, and the process has less room to absorb a mistake.

It is also why a supplier's answer to 'when can you run this?' tells you more about their process than their answer to 'how fast can you run this?'.

Seasonal control is invisible on a specification sheet, so it has to be verified as a process record rather than accepted as a product claim. Four things are worth asking for.

Twelve months of drying-hall temperature and relative humidity logs, including the worst winter cold and the peak summer monsoon — a controlled hall produces these immediately and an uncontrolled one produces neither. The pre-firing moisture limit, whether it is checked per piece or per batch, and what is done with a body that fails. Dimensional reports on samples pulled in different seasons, because a February sample and a July sample should tell the same story if the process is genuinely controlled. And the mixing and resting records for the body and the glaze, which is where batch-to-batch variation is either prevented or created.

The commercial point is blunt: a supplier who cannot show those records is asking you to absorb seasonal variance through returns and warranty claims after the container has sailed.

As dimensional consistency, or as the absence of it. Where the process is stable, bodies cast in any season hold their wall thickness and rim geometry inside the drawing tolerance, and a farmhouse sink sits flat against the cabinet run without shimming. Where the process is left to the weather, the same drawing produces a batch that is dimensionally acceptable in October and out of tolerance in July.

Buyers usually experience this as inconsistent fit on a repeat order rather than as obvious breakage, which is exactly why it is worth auditing before a programme is committed rather than after the second container.

Two habits turn that risk into a manageable one. Accept the industry's tolerance rather than pretending it does not exist — fired fireclay carries a recognised dimensional variance of around two per cent, and a supplier who claims zero is describing a different material. And template the countertop after the sink has arrived on site, because the drawing is a target and the piece in your hand is the one the stone has to fit.

A published firing temperature is a product specification. It is not a universal threshold that separates a good sink from a bad one, and it does not stand in for the things that actually decide how a sink performs: whether the glaze fits the body, how uniform the wall section is, how the sink was supported after installation, and what the warranty actually covers.

This matters because the number is easy to market and easy to compare, which is precisely why it gets used as a proxy for quality. Two sinks fired at the same peak temperature can differ completely in dimensional repeatability, glaze durability and reject rate, because the peak temperature is one parameter among several — the ramp, the soak, the cooling curve and the zone uniformity all sit behind it.

Read a firing temperature as one data point. Then ask for the four reports that tell you whether the process behind it is controlled: wall thickness, fired dimensions, glaze fit, and the moisture and firing records for the batch.

Why does a fireclay sink crack during drying rather than during firing? Because drying is where the surface and the core are asked to shrink at different rates. Firing finishes the job, but the stress that starts a crack is usually built in beforehand.

Can a humid climate be compensated for? Yes — with dehumidification, controlled ventilation and a slower schedule. What cannot be compensated for is a drying hall with no measurement and no feedback, because there is nothing to compensate against.

Is a wet green body obvious? No, and that is the problem. A body that still holds moisture looks exactly like a dry one until the kiln turns that water into steam. This is why the pre-firing moisture check matters more than it sounds like it should.

Does a higher firing temperature mean a better sink? No. It is one specification among several. Glaze fit, wall uniformity and firing uniformity decide more about how the product behaves than the peak number does.

Why does fit vary between orders? Almost always because the process moved with the weather, or because the countertop was cut from the drawing rather than from the sink. Both are process questions, not product questions.

What tolerance should I expect on a fired fireclay sink? Industry practice recognises a dimensional variance in the region of two per cent for fireclay products, and that is why experienced fabricators template after delivery.

What is the single best audit question? Twelve months of drying-hall and kiln records. A controlled process keeps them as a matter of routine; an uncontrolled one cannot produce them at all.

Does any of this change the sink I should buy? It changes which supplier you can rely on for repeat orders. A stable process delivers the same sink in July as in February, which is the whole of the commercial argument.
