Packing Fireclay Sinks: Zero-Breakage Freight

When a pallet of sinks arrives with a fractured bowl, the assumption at the receiving dock is usually that someone dropped it. That is rarely the mechanism. The commoner cause is movement inside the carton: a sink that can shift by even a few millimetres under sustained multi-axis vibration will, over a long crossing, load its own weight onto a rim or an apron corner, repeatedly, until the ceramic gives.

A sea crossing attacks the pack in four different ways at once. Sustained low-frequency vibration from the hull and the engine. Repeated impact at both ends of the journey, from the yard to the vessel and from the vessel to the truck. Stacking compression on a carton that may be at the bottom of a load for weeks. And humidity, which is the one that quietly removes the strength of the carton itself.

Each of those needs a different part of the packaging to answer it, which is why 'we pack carefully' is not a specification. A carton that survives a drop test can still arrive with a broken sink if it cannot hold its shape under stacking compression after two weeks at sea.

Padding fills space. Suspension holds position. They are not the same thing, and only one of them protects a large ceramic body.

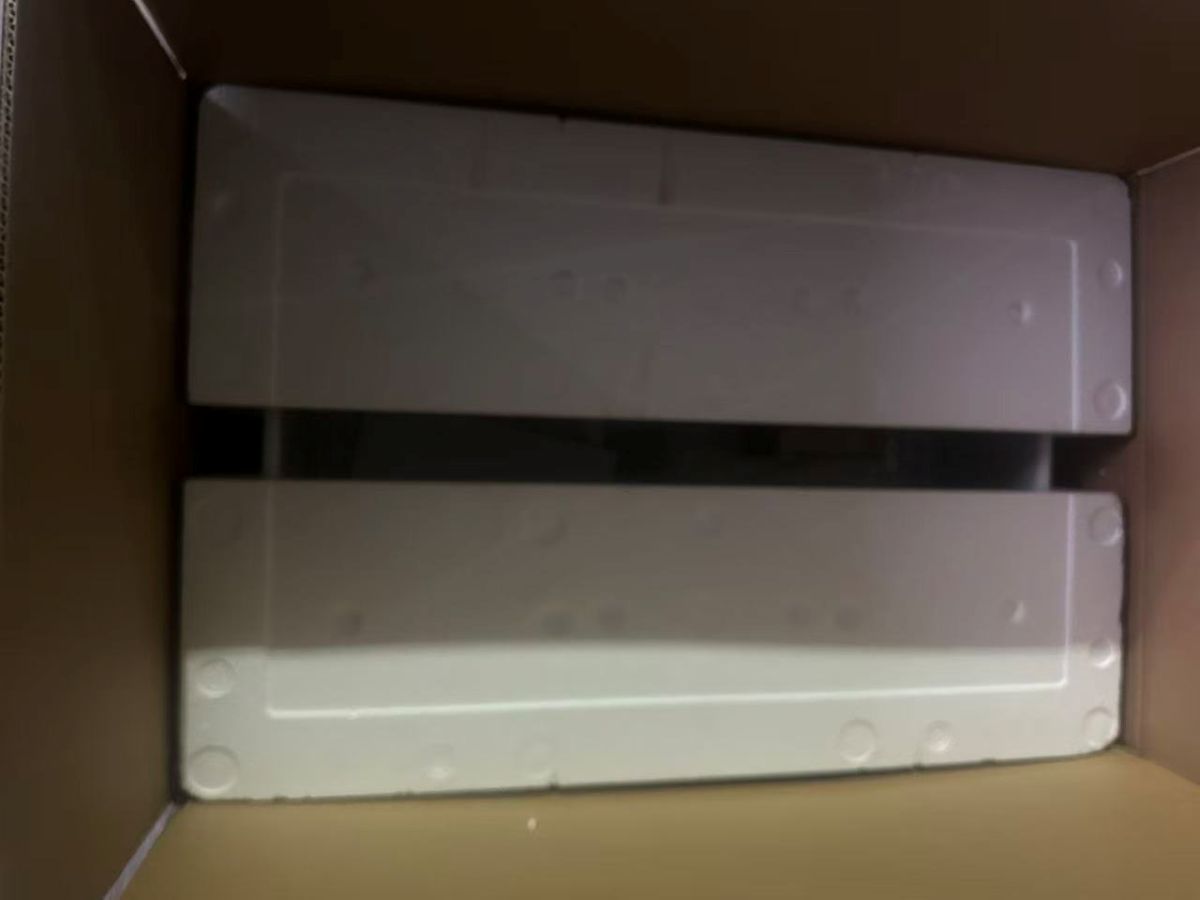

The engineering version of this is a custom insert — high-strength honeycomb board or a moulded foam block — that holds the sink suspended in the middle of the carton, away from the carton walls, so that the walls can deform on impact without the deformation reaching the product. Contact points are then reinforced where the sink actually touches the insert, because that is where the impact energy arrives.

For a fireclay sink, the surfaces that need this treatment are specific: the rim, the two apron corners, and the drain boss. The apron corner deserves particular attention because it is the part that sticks out of the carton's footprint; it is also the part that gets chipped while someone is carrying the box, cutting the cabinet, or trimming the countertop.

This is the counter-intuitive part of the discipline, and it is worth being blunt about: over-packing is not scientific packing. If the cushioning is compressed until there is no room left, the carton stops behaving as a cushion and starts behaving as a rigid container. Impact energy then travels straight through it into the product's stress concentration points instead of being dissipated.

The correct approach is to design the cushion for the actual load. A cushioning curve tells you how much compression space a given product mass needs to decelerate a given impact over a safe distance, and how much bearing area the load has to be spread across. Get that wrong in the direction of 'tighter and thicker' and you produce a heavier carton that breaks sinks.

So when a supplier says their pack is thicker than anyone else's, the useful reply is to ask for the cushioning calculation and the transit test that validated it. Bigger is not a specification either.

For heavy ceramic on a long sea route, the starting point is a heavier fluted board — five-ply or seven-ply, with a reinforced or double-wall construction and a high compression value for its weight. Domestic cartons are sized for a single pallet movement; they are not built to sit loaded at the bottom of a stack for weeks in the tropics.

Two practical numbers belong in any packaging specification. The first is a limit on single-carton weight, because heavy cartons are also handled by hand somewhere in the chain and a box that is too heavy to lift safely gets dropped. The second is a compression safety factor, because the board's stacking strength measured in a lab is not what it will have after a fortnight at sea.

A water-resistant outer liner matters as much as the board grade. Corrugated board loses a meaningful share of its strength as it absorbs moisture, and a container crossing the equator is a humid environment by design. Where the destination has rough handling, the answer is not a thicker carton alone but a raised drop-test severity and more edge and corner drops in the validation.

More than most buyers budget for. Corrugated board strength falls as moisture content rises, and goods in a closed container can be exposed to condensation as the vessel moves between climate zones. A pack that stacks safely in the factory yard can be a soft pack by the time the container reaches a temperate port.

The industry answer is a combination rather than one measure: a moisture-resistant liner on the board, a waterproof film around the load, and desiccant inside the carton or the unit load, with the quantity increased when the container floor humidity is high. Where the load is stored before shipping, warehouse temperature and humidity control matters too, because board creeps under sustained load and recovers poorly.

For a buyer, this is one of the few places where a small specification change has a visible effect on the arrival rate. It is also invisible in a quotation, which is why it is usually the first thing dropped when a supplier is asked to hit a number.

A fireclay sink is dense and heavy, so the carton has to carry mass under static load, not just survive one impact. The weight is the reason the cushioning has to sit under the product as well as around it: there is more inertia to arrest, and less margin for a gap.

The vulnerable features are geometry rather than material. A long flat rim with little material behind it. Two apron corners at the most exposed point of the box. A drain opening whose boss is thinner than the walls around it. The glaze, which will show a scuff even when the body is intact — and a scuff on a visible surface is a customer complaint whether or not it is structural.

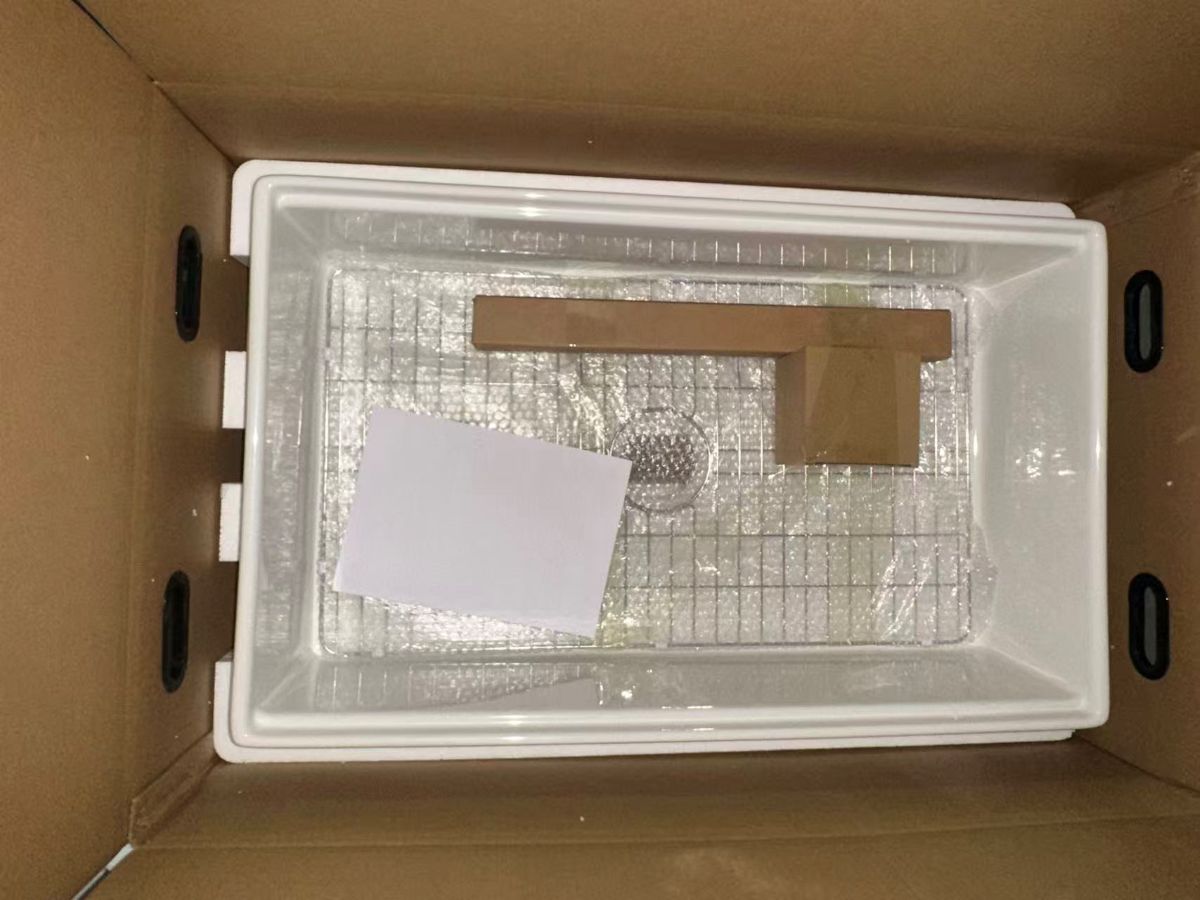

That last point is worth a specification of its own. A protective film or sleeve over the whole product, on top of the structural cushioning, is what stops fine surface damage from transit dust and handling. It is cheap, and it removes an entire class of claim.

With an insert formed to the actual model rather than a generic shape cut to fit. Moulded foam or a formed honeycomb cradle that follows the sink's own profile holds it immobile in all three axes, which is the whole objective: a piece that cannot move cannot build momentum.

Where a single carton holds more than one item, separators between them are not optional, and bare packing — a sink in a box with loose filler — is how a rim gets cracked by something else in the same carton. Items that are heavy or hard should never share a carton with ceramic.

There is a simple acceptance test that requires no equipment: at least a couple of inches of cushioning between the product and the carton wall, no audible or visible movement when the closed carton is tilted, and no edge detectable through the board. If any of those three fails, the pack is not doing the job regardless of what the drawing says.

Carton integrity and load integrity are separate problems. A perfect carton in a load that moves is still a broken sink. Once palletised, the objective is that the unit behaves as one body from the factory door to the receiving dock.

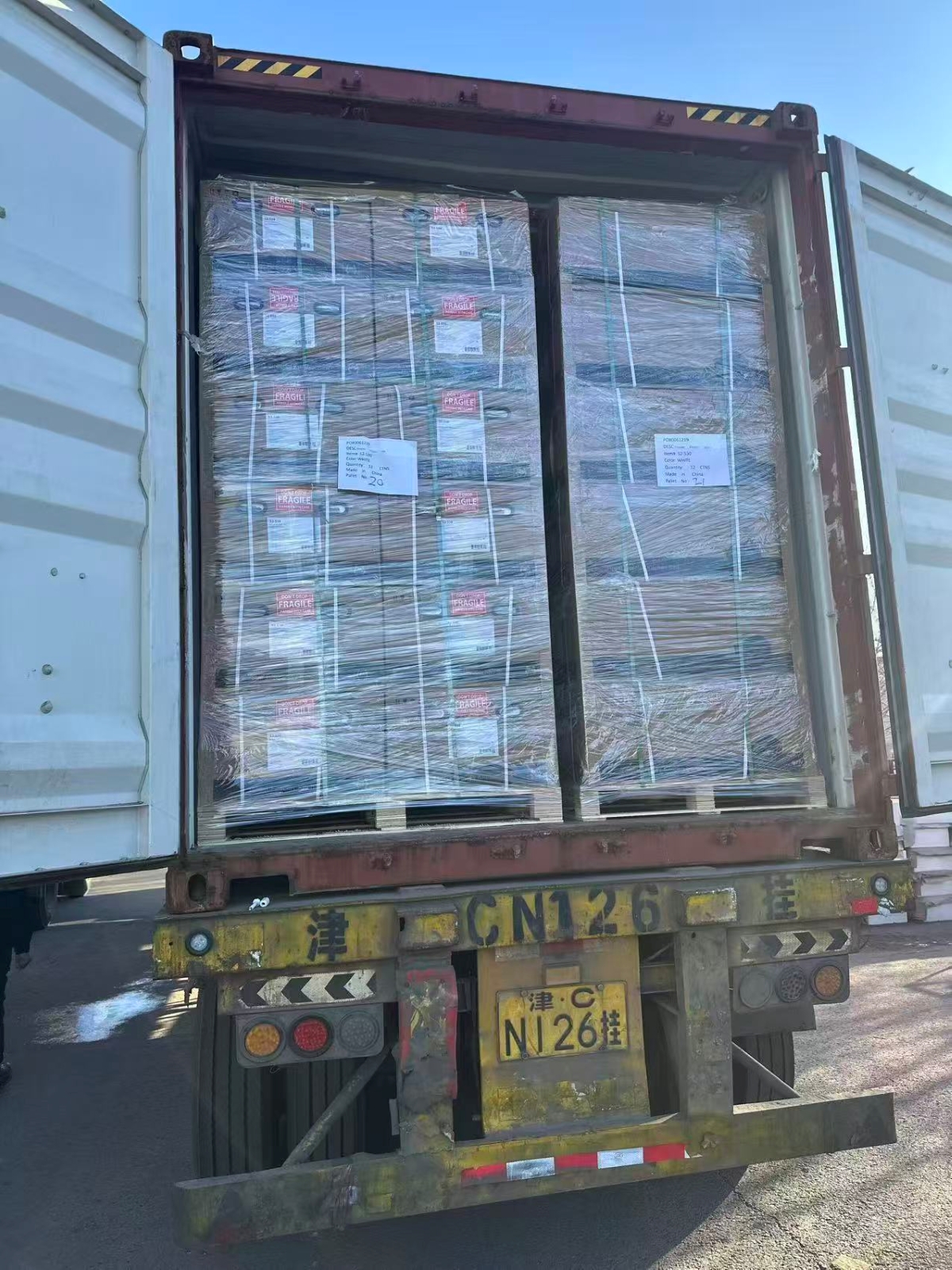

In practice that means multiple layers of industrial stretch film holding the stack rigid, corner protection on the pallet, and anti-slip material between the pallet base and the container floor so the unit cannot walk. Fragile loads belong above other cargo rather than under it, layers are separated with boards or cushioning so that stacking pressure is distributed rather than concentrated, and any gap between the load and the container wall is filled so the cargo cannot build momentum in heavy weather.

Where the load is out of gauge or unusually heavy, the suspension approach — a base that absorbs movement plus strapping that stops travel — is the standard answer. The principle in all cases is the same as inside the carton: stop movement, then absorb shock.

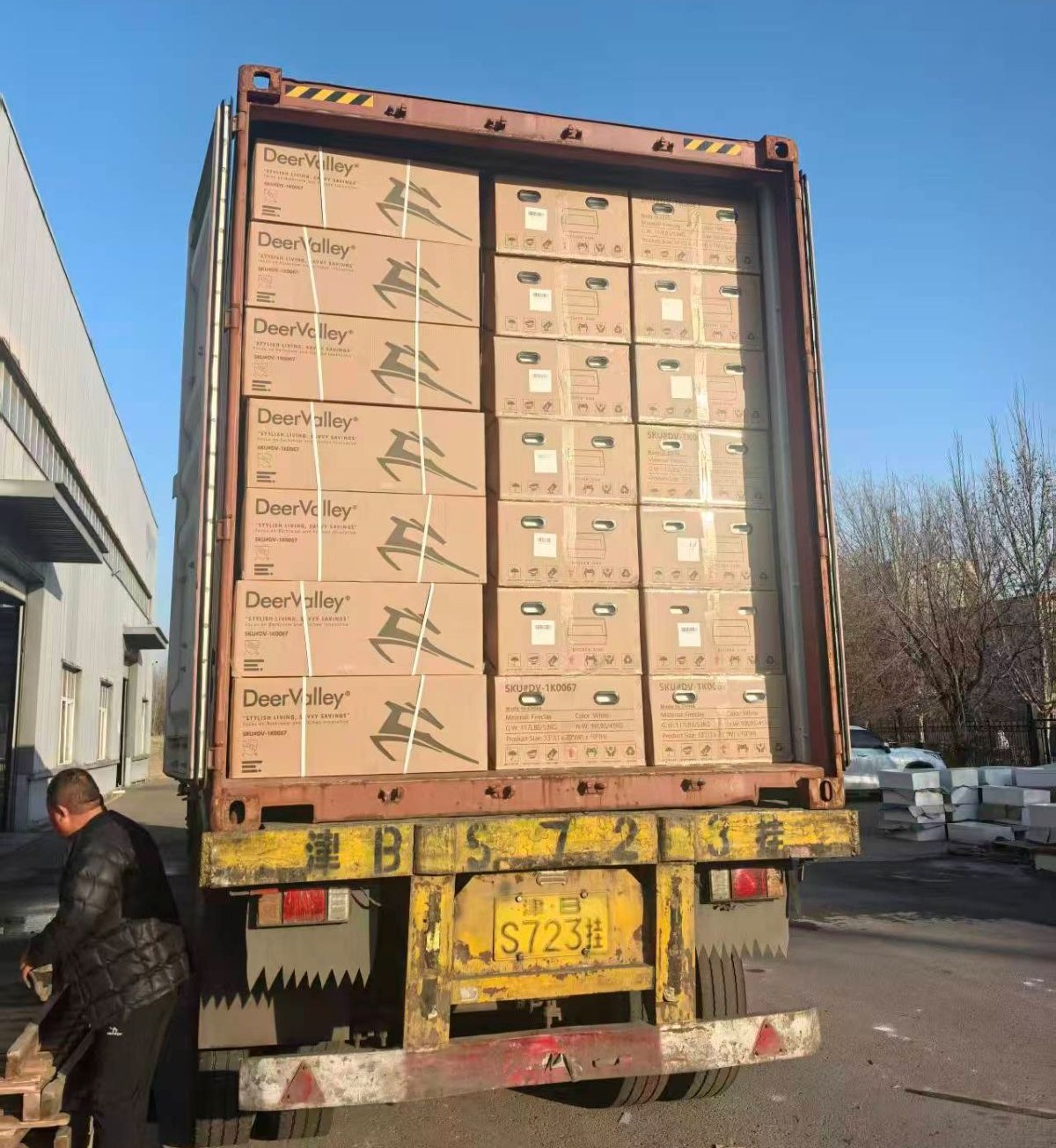

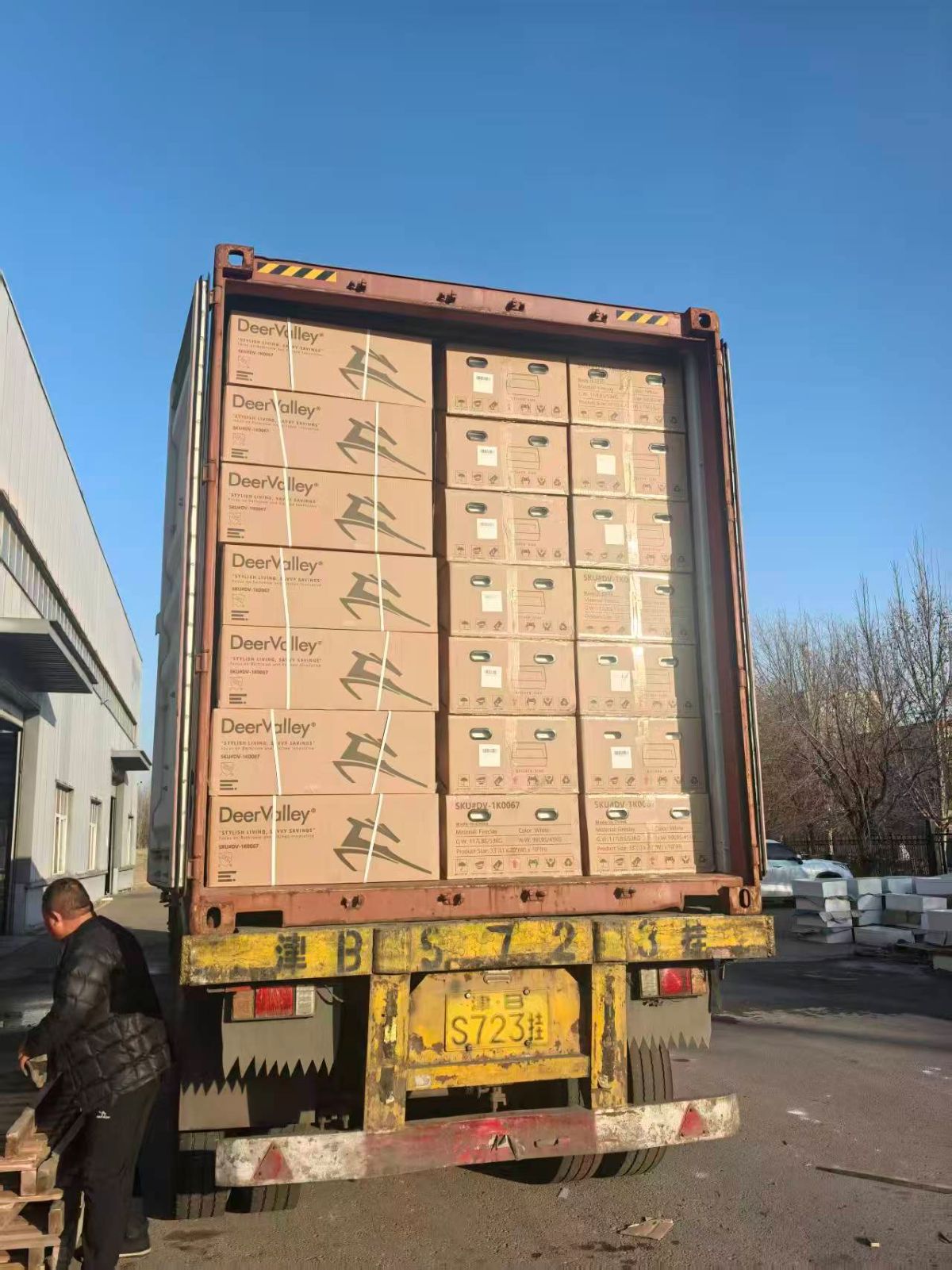

Standard export marking is worth doing properly: fragile, this side up, and do-not-stack markings in the languages of the route, plus the handling pictograms that terminal staff actually recognise. For a distributor running their own brand, the carton also carries their logo, SKU, barcode and the destination-market certification markings, so a pallet can be scanned and put away without relabelling on arrival.

It is worth being honest about how much those labels do. They help at the margin and they are expected by the trade, but no marking has ever stopped a load from being stacked. The protection has to be in the structure, and the labels are a supplement to it — which is also why a supplier who points to their markings as evidence of care is telling you they have nothing else to point at.

One label does have a real operational function: identification. A carton that carries a batch or carton reference is a carton whose damage can be traced to a specific unit load, which is what turns a claim from a negotiation into an answer.

Four documents, all of which a serious exporter should already have. The carton board grade and liner specification, with the compression value. The packaging drawing for your exact model rather than the product family — a formed insert is model-specific by definition. The transit test protocol and its result, covering drop, vibration and compression, as it was actually run on that layout. And the packing and loading photographs, taken with the carton label in frame, because that is the evidence that makes a later claim answerable.

Ask for all four before the first production run, not after the first loss. A supplier who cannot produce the packaging drawing for a specific model is packing that model by instinct, and the first container is the test.

This is where most claims are won or lost, and it takes ten minutes. Count and inspect every piece before signing anything. Where the load is delivered by truck, note specific findings on the delivery receipt — corners bent, wrapping torn, banding broken, two cartons short — in the driver's presence, and where the load itself is damaged, sign the proof of delivery as damaged.

Two things are commonly done wrong. The first is signing clean and inspecting later: signing without a notation is generally treated as acknowledging the goods arrived in good visible condition, and it is very hard to argue with afterwards. The second is writing a phrase like 'subject to count and inspection' in place of a real description. It does not move responsibility, and it does not preserve anything.

Then call the carrier immediately to schedule an inspection, and confirm the call in writing with the date, the time and the names involved. That single email establishes the timeline — and where the carrier does not attend within its own window, the receiver is entitled to inspect and file the findings.

Concealed damage is the one that was not visible at the dock: the carton looked sound, and the damage appears when the sink comes out of the packaging. Policies differ by company, but the pattern is consistent — a short notification window, often measured in a day or two rather than weeks — and it starts at delivery, not at the moment someone opens the box.

What the notification has to contain is also consistent: the order or delivery reference, a description of the damage, photographs of the damaged item, photographs of all of the original packaging and packing materials, and a photograph of the shipping label. Not one photograph — the item, the packaging and the label.

So the question for a distributor is procedural rather than legal. Who opens the containers, how quickly, and with what checklist? If the answer is 'whoever is free that week', concealed damage will be reported late, and late reports are the ones that get refused.

By treating the evidence as part of the process rather than as a reaction to a loss. Four habits cover almost all of it.

Keep the damaged piece and all of its packaging until the claim is settled. Disposing of the packaging before the matter is resolved can itself be grounds for refusing the claim, because the reviewer loses the ability to inspect the pack that failed. Expect that the carrier may want to collect both.

Photograph the whole item, not a close-up. A zoomed picture of a chip tells a reviewer nothing about where it is or how big it is; the requirement is normally for the entire product, the packaging as it was arranged, the outside of the carton and the label with the tracking reference. Add the carton dimensions, and state where the goods currently are.

And keep the submission complete. Damage policies tend to be explicit that a partial set of documents results in a rejected claim. It is a paperwork process, and the file either contains what was asked for or it does not.

Why do I need a packaging drawing rather than a photograph? Because a photograph shows what a pack looked like once. A drawing shows the insert geometry, the contact points and the cushioning depth for your model, which is what lets you check that the pack we are shipping is the pack that was tested.

Is thicker foam always safer? No. Cushioning has to be designed against the product's mass and its bearing area. Packed too tight, the carton becomes rigid and passes impact straight through to the sink.

How do I know the carton is strong enough? Ask for the compression value and the transit test results, and ask what single-carton weight limit is applied so the box can be handled safely by hand.

What breaks first on a large fireclay sink in transit? Usually the apron corner, or the rim where the piece has been able to move inside the carton. Both are consequences of movement rather than of a single impact event.

What do I do if the load looks fine but the sink is damaged inside? Report it as concealed damage to the carrier's timeline, in writing, with photographs of the item, the packaging and the label — and keep everything until it is settled.

Can I stack the cartons? Ask what the packaging was validated for. Board loses strength with moisture and time, so the stacking figure that is safe in a dry warehouse is not automatically safe in a container.

Should the sink be marked with our brand? Yes — logo, SKU, barcode and destination-market markings can all be printed at the carton, so the pallet is put away without relabelling.

What is the single most useful thing to request before ordering? The transit test report for the exact packaging layout, plus photographs of a packed and loaded pallet. Everything else about packing follows from whether those two exist.
