Close Coupled vs Back to Wall vs Wall Hung Toilets

Walk into any British bathroom retailer and the toilets on display sort themselves into three groups, by the same two questions the trade uses: where does the cistern sit, and what carries the pan.

In a close coupled toilet, the cistern sits directly on the back of the pan and the two are bolted into one unit; the pan stands on the floor. In a back to wall toilet, the pan also stands on the floor and is fixed against the wall, but the cistern is concealed — inside a furniture unit or inside the wall behind a flush plate. In a wall hung toilet, the pan is suspended clear of the floor on a steel carrier frame that also houses the cistern.

That is the entire taxonomy. Everything buyers read about style, cleaning, installation and servicing is a consequence of those two structural decisions, which is why the same three names appear in every UK buying guide with only the adjectives changed.

The distinction matters differently on each side of the transaction: for a household it is a design and maintenance decision, while for a distributor or project buyer it is a stocking decision — the three formats fail in different ways, and the installation skills they require do not overlap completely.

Close coupled is the default British bathroom toilet, and the definition is mechanical: the cistern bolts directly onto the back of the pan through a coupling kit, forming a single unit that connects to the floor and, in most installations, to a wall-outlet soil pipe behind it.

Its advantages are the reasons it dominates. Installation is the simplest of the three — everything is exposed, the cistern lid lifts off for access, and most plumbers fit one quickly. Replacement is equally direct: the critical measurement is the rough-in, the distance from the wall to the centre of the waste outlet, and a buyer who measures it before ordering can swap like for like.

The format also carries variants that matter in practice. An open back close coupled pan leaves a gap behind for the pipework to run visibly but accessibly — the forgiving option where existing plumbing does not sit neatly. A closed back variant sits flush to the wall and hides the pipework, at the cost of needing the pipe positions right the first time.

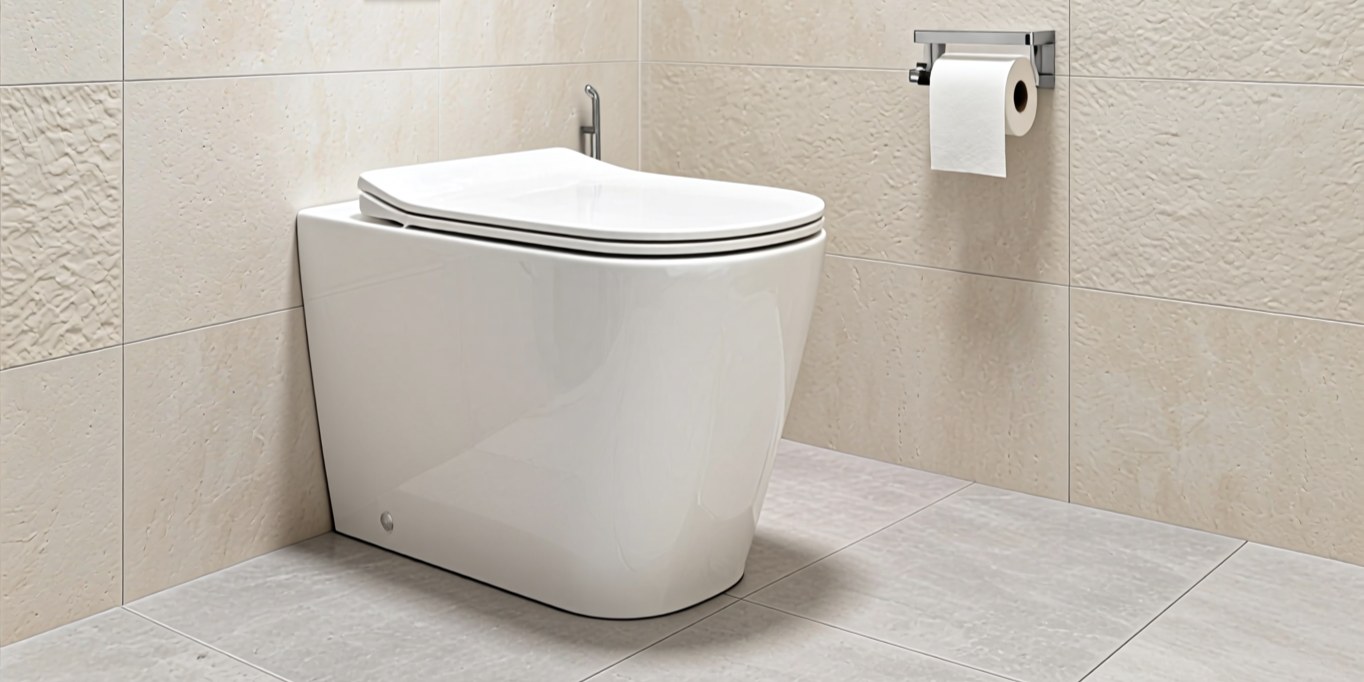

A back to wall toilet keeps the pan on the floor but removes everything else from view: the pan is fixed firmly against the wall, the cistern is concealed inside a furniture unit or the wall cavity, and the only visible control is a flush plate or button.

The structural point that surprises buyers is how simple it is: because the weight goes through the floor, no carrier frame is needed — a back to wall pan offers the streamlined look of a wall hung toilet with a fraction of the structural work. The pan slots into the junction of wall and floor, and the concealed cistern does the rest.

What the format buys is the aesthetic of a fitted bathroom: no visible pipework, no cistern, a bowl that meets the wall cleanly, and the option to build the pan into the same run of furniture as the vanity. Cleaning around the base is easier than a close coupled unit for the same reason.

The trade-off moves from structure to planning. The cistern is out of sight, so access for future servicing depends entirely on how the installation was planned — which is why the access panel is the single detail worth insisting on.

A wall hung toilet is the signature look of the contemporary European bathroom: the pan floats a short distance above the floor, fixed to a steel carrier frame concealed behind the wall or the furniture, with the cistern inside the frame and a flush plate as the only visible part.

The frame is the load path. It carries the pan, the cistern and the user, and it must be fixed back to structure — which is why installation belongs to the demanding end of the category: the frame, the tiling and the plate all have to be planned together, typically in new builds or full remodels rather than like-for-like swaps.

What it buys is unmatched in the other formats: the floor beneath the pan stays completely exposed, cleaning takes seconds, the room reads larger, and the hanging height is chosen at installation — the natural answer where a specific seat height is wanted.

For buyers comparing the three, wall hung is best understood as the premium expression of the idea a back to wall pan delivers more economically: a bowl with nothing around it. The difference is where the weight lands — floor versus frame — and everything in the specification follows from that one fact.

The comparison a buyer actually runs is not aesthetic; it is operational. The table below compresses the three formats into the columns that decide a specification, with the price column deliberately left out — landed cost varies far more with cistern and seat quality than with format.

Rimless is the word doing the heaviest lifting in European toilet marketing, and it is routinely misunderstood as a format of its own. It is not a fourth option beside the three — it is a bowl architecture that overlays any of them.

A conventional washed-down bowl carries a rim: an undercut lip around the top of the bowl from which the flush water distribution happens. The rim works, but the cavity beneath it is hidden from view and from the brush, and it is where residue accumulates. A rimless bowl removes that cavity entirely — water is distributed by the pan's internal geometry instead, every wettable surface stays visible and reachable, and the flush sweeps the full inner surface.

UK retail guidance makes the orthogonality explicit: rimless versions are available across the formats, from close coupled to wall hung, because rimless describes how water moves in the bowl, not how the pan is supported. A rimless back to wall pan and a rimless wall hung pan are the same hygiene story in two different installations.

Two adjacent details complete the hygiene case, and both live on the drawing rather than the label: a fully glazed trapway, so the internal passage has the same smooth, non-porous surface as the bowl, and the flush volume rating the cistern delivers. Our rimless pans pair the rimless bowl with a fully glazed trapway and a 4/6-litre dual flush as standard.

Our toilet range runs twenty-one models, and its shape reflects where the European and UK market is actually buying: nineteen of the twenty-one are back to wall pans, complemented by one wall hung rimless pan and one close-coupled-style one-piece body. Eighteen of the twenty-one are rimless.

The nineteen-pan back to wall family is a deliberate position, not an accident of the catalogue. Back to wall is where the European mainstream has landed: it delivers the concealed, fitted look that wall hung is famous for, without the structural project a carrier frame imposes — which makes it the format that scales across the widest spread of projects, from city apartments to hospitality washrooms.

Within the family, the variation buyers choose between is geometric. The compact pans run a projection of about 520 mm — the depth that decides whether the door of a small bathroom clears the bowl. Larger two-piece skirted bodies run deeper because they carry the cistern's mass in the body itself. Bowl shapes across the range follow the European vocabulary of round-front, D-shape and soft-square forms.

Every pan in the range shares one service architecture: a P-trap wall outlet at the European-standard 180 mm rough-in, a washdown dual flush at 4/6 litres, and a vitreous china body fired at 1280°C with water absorption below 0.2 per cent. Seats are UF soft-close units with quick-release hinges, so the bowl opens for cleaning without tools.

For a distributor, the practical reading of the range is coverage: one format, one trap standard, one flush philosophy, in enough projections and bowl shapes to fill a planogram without introducing a second set of installation instructions.

The three formats fail in different places, and the checks that prevent the failures are cheap to run at specification stage.

Measure the rough-in. For replacement work in the UK, the horizontal distance from the wall to the centre of the waste outlet is the dimension that decides whether a like-for-like swap is actually like-for-like. European wall-outlet pans are built around a 180 mm P-trap outlet height, and a pan ordered against an assumed dimension is a pan that comes back.

Concealed-cistern formats move the servicing question into the installation plan, and the trade guidance converges on one instruction: insist on an access panel or a removable furniture front, agreed at specification stage. A concealed cistern behind a sealed wall is not a modern bathroom feature; it is a future demolition.

Match the frame to the wall, not the catalogue. Wall hung installations need the carrier frame fixed back to structure, and the frame specification is the frame manufacturer's to state — a buyer's job is to make sure the wall being offered can carry it.

And confirm the paper trail. For European and UK destinations that means EN 997 flush-performance certification, CE or UKCA marking as the destination requires, and ISO 9001 certified manufacturing behind them — with certificate file numbers available on request. The technical drawing for the exact model completes the set: projection, trap position and flush volume are all on it.

Toilet marketing carries a few claims that deserve a sceptical reading — not because they are false, but because they are not the decision.

Rimless means a specific bacteria reduction. Percentage hygiene claims circulate widely in this category with no test method attached. The honest version of the rimless case is structural: the under-rim cavity is gone, so there is nowhere hidden for residue to sit. A number without a method is marketing.

Wall hung is fragile. A correctly installed pan hangs on a steel frame fixed to structure, and the format is a commercial-washroom staple precisely because it survives heavy use — fragility is a property of a bad installation, not of the format.

Back to wall is just a cheaper wall hung. The two share an aesthetic and almost nothing else: different load path, different cistern housing, different installation trade. Choosing between them is choosing where the weight lands and who does the work, not a discount decision.

One trap standard fits every market. The 180 mm P-trap wall outlet covers the European and UK mainstream, which is exactly why our range is built on it — but outlets, flush volumes and fittings conventions differ by market. Confirm the destination before the container, not after it.

What is the difference between close coupled, back to wall and wall hung toilets? Two things: where the cistern sits and what supports the pan. Close coupled bolts the cistern on top of a floor-standing pan; back to wall hides the cistern in furniture or the wall behind a floor-standing pan; wall hung suspends the pan off a steel carrier frame that houses the cistern.

Which format is most common in the UK? Close coupled remains the default in British homes — it is the simplest to install and service. Back to wall and wall hung are the formats the modernising market is moving toward, with back to wall the more common of the two.

Does a back to wall toilet need a frame? No. The pan stands on the floor and the weight goes through it, so no carrier frame is required — only a concealed cistern in the furniture or the wall behind. That is the format's core advantage over wall hung.

Why do wall hung toilets need a carrier frame? The pan carries no load from the floor; the frame does. It is a steel structure fixed back to the building's structure that carries the pan, the cistern and the user, and it must be specified against the wall it is being fixed to.

Is rimless a separate type of toilet? No. Rimless describes the bowl architecture — no under-rim cavity, flush water distributed by the pan's internal geometry — and it is available across all three formats. Our own range applies it to back to wall and wall hung pans alike.

What are the benefits of a rimless bowl? The hidden cavity beneath a conventional rim is where residue accumulates and a brush cannot reach. Removing it leaves every wettable surface visible and swept by the flush, so cleaning is simpler.

What is a fully glazed trapway? The internal passage from bowl to soil pipe carries the same glaze as the bowl, giving it the same smooth, non-porous surface. On an unglazed passage, the porous ceramic body is exposed exactly where waste flows.

What rough-in do European wall-outlet toilets use? The mainstream standard is a 180 mm P-trap wall outlet, which is the rough-in our entire toilet range is built around. For replacement projects, measure the existing outlet position before ordering rather than assuming it.

Which certifications cover the range for European and UK projects? EN 997 flush-performance certification, CE and UKCA marking, and ISO 9001 certified manufacturing — with certificate file numbers available on request. The compliance paperwork travels with the order, not after it.

What flush volume do UK toilets use? The UK convention is a 4/6-litre dual flush — four litres reduced, six full. Our pans pair with dual-flush cisterns at exactly those volumes, which is also where the water-efficiency conversation starts and ends honestly.

How do I choose between back to wall and wall hung? Decide where the weight should land and who is doing the work. Back to wall keeps the pan on the floor and needs only a concealed cistern; wall hung needs a carrier frame fixed to structure but leaves the floor completely clear. The aesthetics are close; the installations are not.

What should I check before ordering a concealed-cistern toilet? That the installation plan includes access — an access panel or an opening furniture front — agreed before tiling. The format's only real liability is a cistern that cannot be reached, and it is entirely avoidable at specification stage.

Which formats does TAITAO manufacture? Twenty-one models: nineteen back to wall pans — the European and UK workhorse format — one wall hung rimless pan, and one close-coupled-style one-piece body. Eighteen of the twenty-one are rimless, all built on the 180 mm P-trap wall outlet with 4/6-litre dual flush.
