Kiln Waste Heat Recovery: What ESG Reports Miss

Because the buyers driving it are retailers. A ceramic supplier's environmental performance increasingly reaches them through a supplier questionnaire, a factory audit or a tender requirement rather than through anything the supplier chooses to publish. The question tends to arrive in the form of data: what is your energy intensity per unit, measured where, over what period?

That framing is awkward for factories, because measuring energy intensity properly is genuinely difficult — it depends on the load, the mix of products and what you count. It is also liberating, because it means an environmental claim can be answered with records rather than rhetoric.

For a buyer, the useful stance is neither cynicism nor trust. It is the same stance used for every other technical claim in this industry: ask what was measured, where the boundary sits, how it was metered and who verified it.

Into firing, and then into drying. A vitreous china or fireclay body is fired at 1200–1280°C for many hours continuously, and the kiln runs whether or not the factory is at full capacity. The comparative energy consumption of forming, glazing and finishing is small next to that.

Which means the structure of any credible environmental programme is determined by the process rather than chosen by management. If the kiln is where the gas goes, the kiln is where the work has to happen — first in how the firing schedule is designed and maintained, and second in what happens to the heat that the kiln has to shed before the ware can be handled.

A supplier who talks about environmental performance without talking about kilns is describing purchasing decisions — recycled packaging, LED lighting, an electric vehicle — rather than the thing that dominates their footprint.

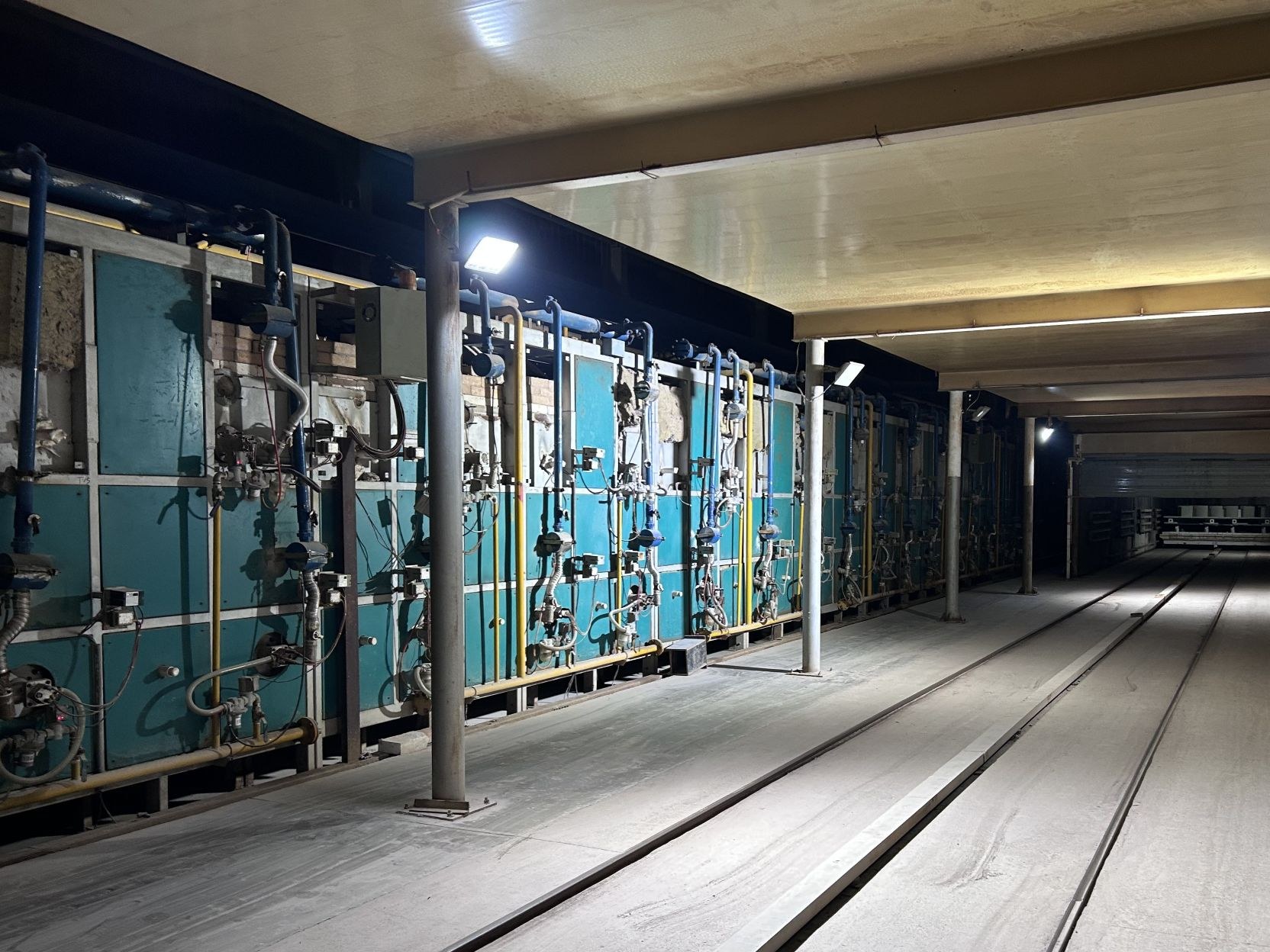

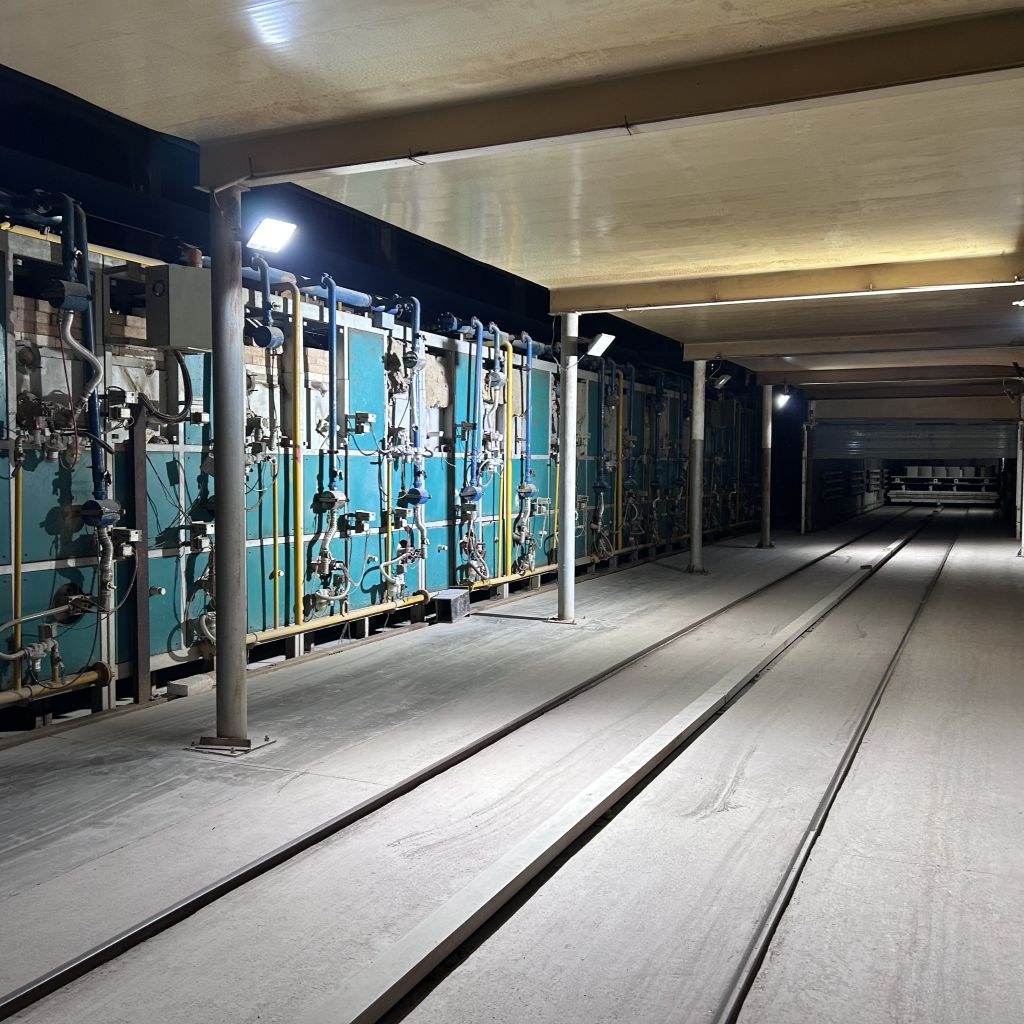

A tunnel kiln is a long, continuously moving heat exchanger. Ware enters cold, passes through preheating and a peak soaking zone, and then travels through a cooling section where the temperature has to come down in a controlled way — fast cooling cracks ceramic, so the heat is removed gradually and deliberately.

That cooling air is the opportunity. It is not a by-product of an accident; it is heat the kiln must get rid of anyway, at a temperature that is wrong for firing and right for drying. A tunnel kiln also produces flue gases from combustion, which are hotter and dirtier, and which can be used to preheat combustion air rather than vented.

The engineering principle behind a good energy programme is therefore about matching temperature grades rather than about collecting everything. High-grade heat goes back to a high-grade use; the low-grade heat that the cooling zone has to dump goes to the one process in the factory that wants exactly that: drying greenware.

The cooling section is ducted. Air drawn across the cooling ware is collected rather than released, and carried through insulated ducts to the drying rooms where unfired bodies are held before firing. There it does the job that would otherwise be done by burning more gas: raising the temperature of a drying hall and, more importantly, holding it steady so that moisture leaves the body at a controlled rate.

The reason this works well is that both processes are continuous. A tunnel kiln runs without stopping and produces a steady stream of hot air; a drying hall wants a steady stream of warm air. Intermittent kilns are a much harder match, because their heat arrives in batches that the dryer cannot always use.

The second cascade is smaller and just as standard: using hot exhaust gas to preheat the combustion air going back into the burners, which raises flame temperature and reduces the gas needed for the same firing.

Because drying and firing are competing for the same heat. A green body that reaches the kiln holding water has to have that water driven off inside the kiln, which consumes energy that would otherwise go into vitrification, and — more seriously — does so at a rate the body may not tolerate evenly.

Pre-drying the body before the kiln reduces both problems. The kiln's heat goes where it is wanted, and the water leaves the body under conditions the drying hall can control rather than under the thermal gradient of a firing cycle. That is why the drying stage in a ceramic factory is treated as a process with its own schedule rather than as a waiting room.

So the energy argument and the quality argument point in the same direction, which is unusual and worth stating in a procurement conversation. A recovery system that feeds the dryers is not a compromise made for environmental reasons. It is the same decision a factory would make for yield.

Glazing and casting are water-intensive processes. Slip is water, glaze is applied wet, and the equipment that handles both needs washing between batches. The volume is significant, and it arrives carrying suspended ceramic solids that would otherwise leave the site as discharge.

Treatment follows a well-established pattern in this industry: the water is collected, flocculated so the solids agglomerate, and passed through a filter press. The clear water returns to the mixing stage, and the pressed clay cake can be reintroduced into bodies where its slightly different character does not matter. The measurable outcome is not only lower consumption but lower discharge.

For a buyer, that distinction is worth holding on to. A factory that recirculates water has reduced what leaves the site; a factory that has reduced consumption has done something narrower. Both are useful, and they are not the same claim.

An environmental programme that improves the factory but not the product is incomplete, and ceramic sanitaryware has one historical issue in this area that the industry has largely addressed: lead in glaze formulations. A lead-free glaze programme belongs in the same conversation as kiln efficiency, because it is a materials decision with a product consequence rather than a site consequence.

The corresponding check sits on the finished end. Verifying that fired ware does not release heavy metals, and retaining the records, is what turns a materials statement into something a buyer's compliance team can file. It is also the part of an ESG pack most often requested by European and North American retail buyers.

The practical point is that environmental and materials compliance travel together. A supplier with a sophisticated energy programme and no glaze chemistry documentation will fail the same questionnaire as one with the reverse.

With four questions, which between them convert a claim into a testable statement. What is being measured — energy intensity per unit produced, total site consumption, or something else? What is the boundary: is it the kiln, the plant, or the whole operation including upstream materials? How is it metered: sub-meters on the kiln and the dryers, or a single utility bill divided by output? And who verified it — self-declared, third-party audited, or tied to a certification the buyer can check?

The boundary question is the one that decides comparability. Two suppliers can both report a reduction in energy intensity while measuring different things, and a claim whose scope is not stated cannot be compared with anything, including the supplier's own figure from last year.

The metering question is the one that predicts whether the number will hold. A sub-meter reading on a kiln is a measurement; a total gas bill divided by total output is an estimate that will move with product mix and will therefore move again the moment the order book changes.

Measured reductions in the energy intensity of firing and drying, achieved through equipment and process rather than through offsets. Recovery systems that are installed, ducted and visible on a tour. A water position that states whether recirculation or discharge reduction is the aim. A glaze chemistry statement with the finished-goods checks behind it.

What a supplier can generally not commit to is a specific percentage reduction over a fixed period, because output mix, kiln loading and the destination market's requirements all move. A supplier who offers a precise commitment without a stated baseline and boundary is offering a marketing number.

The most credible position is a description of the equipment, the measurements it produces, and an invitation to audit — because those are things that exist whether or not anyone is asking.

Five lines, and they cost the supplier nothing to answer and the buyer nothing to ask. The energy intensity per unit produced, with its measurement boundary. The recovery systems installed, in plain terms. The process water position: recirculation, discharge, or both. The glaze chemistry and the finished-goods checks retained against it. And the documentation available for review — because a tender that asks for the records rather than the promises tends to receive different answers.

Is kiln heat recovery standard in the industry? Recovering cooling-zone heat into drying is a well-established practice in continuous tunnel kilns. What varies is how much is recovered, how it is metered, and whether the factory can show it.

Does recovery affect product quality? It should not, because the heat is being redirected rather than recycled through the product. In practice it improves the drying stage by making it steadier, which is where ceramic quality is often decided.

Why does the boundary matter so much? Because it determines whether two numbers can be compared at all. A kiln-level figure and a whole-site figure are different measurements of the same factory.

Is carbon offsetting an answer? It can be an addition, but it is not a substitute for reducing the fuel consumed in firing, which is where the footprint actually sits.

What is the most useful single document to request? The energy measurement with its boundary — ideally sub-metered on the kiln and the dryers rather than derived from a utility bill.

Does any of this make the product more expensive? The recovery equipment is a capital investment against fuel consumption, which is a standing cost. The arithmetic belongs to the factory, and the buyer's interest is in whether the measurement exists.

How does this connect to product quality? Through drying. A controlled drying stage is where dimensional consistency and freedom from firing defects are won, and a waste-heat cascade is a way of making that stage more controllable.

What should a buyer do first? Ask the four questions. If the answers are coherent and the records exist, the claim is worth carrying into a tender; if not, the claim is a sentence.
