Wall-Hung Rimless Soft-Square Toilet Manufacturer | cUPC CE UKCA WaterMark WC TAITAO-CH10603

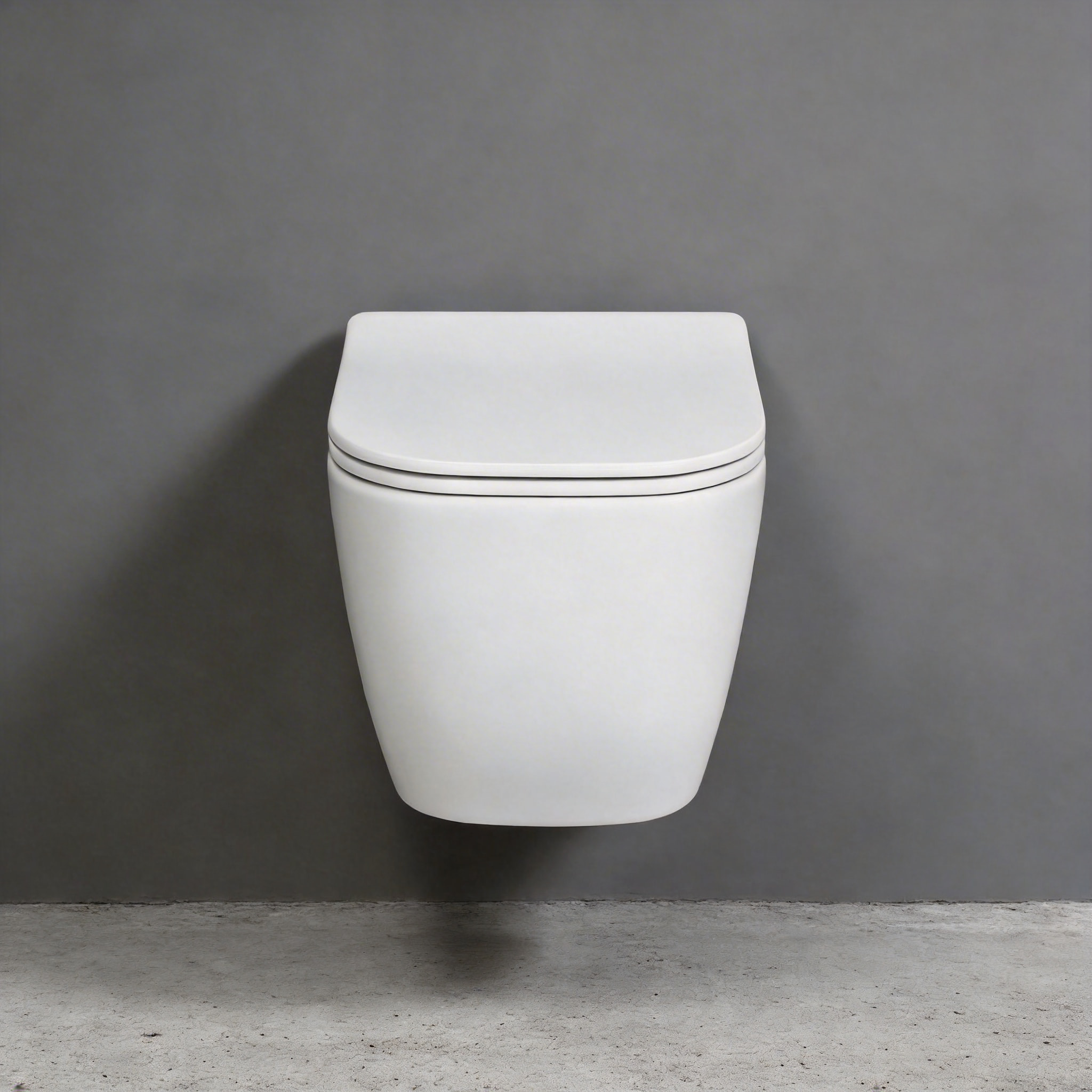

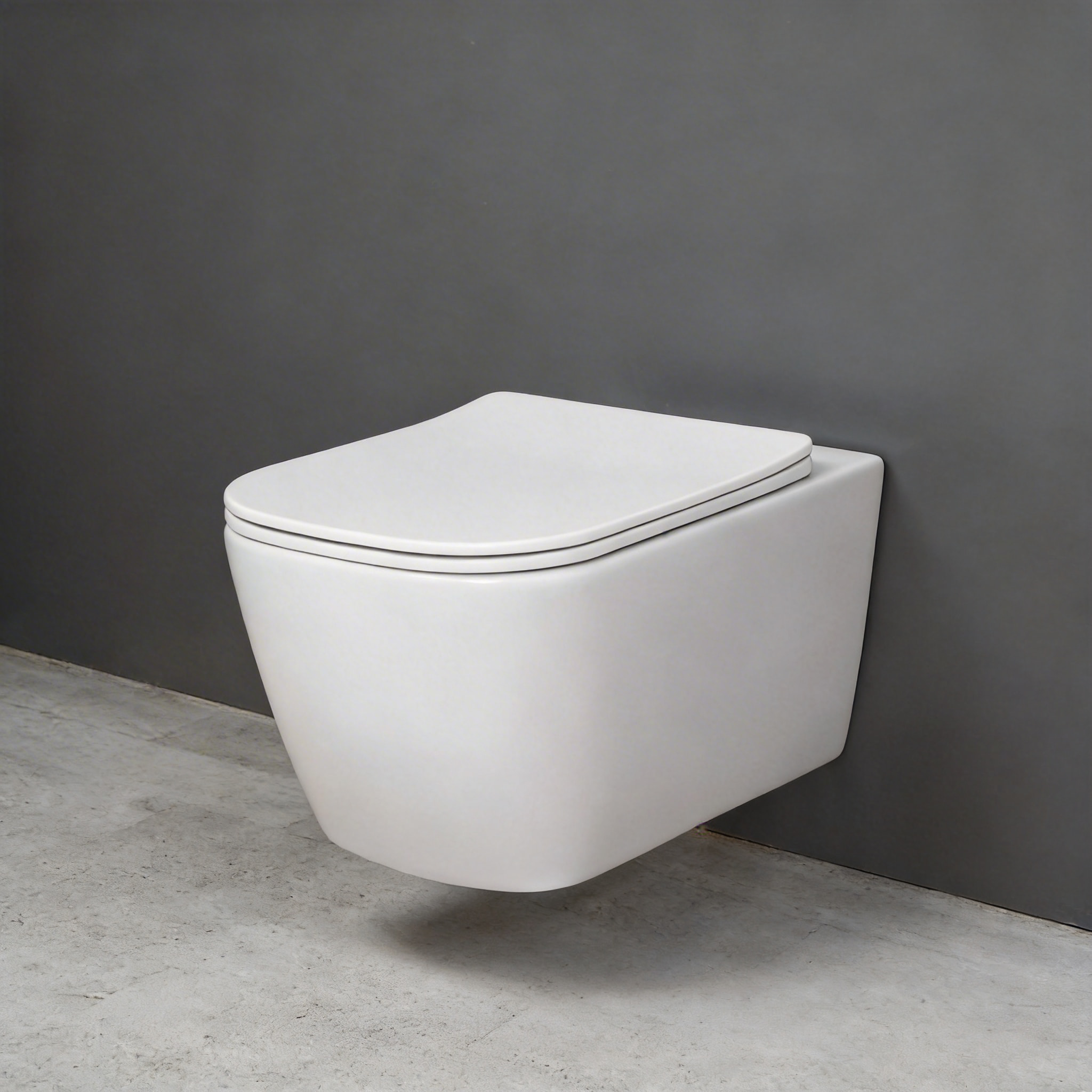

CH10603 is installed on a concealed wall-hung frame (sold separately) — it is a wall-hung rimless pan, not a floor-standing or close-coupled unit. Across European and UK bathrooms, wall-hung is the mainstream choice because the soil pipe is pre-run inside the wall (same-floor wall drainage), so a concealed-cistern frame is the natural, cleanest fit. The pan uses a P-trap wall outlet with the waste centre 55 mm from the finished wall, connecting through the wall to a standard 110 mm soil pipe. The steel carrier frame — not the wall or tiles — carries the full load, so it is fixed to the floor and rear structure (or embedded in a stud wall) and tiled over with a false wall. Once the frame is set, the pan simply clips onto it; later valve or seal servicing is reached through the flush-plate service window without breaking the wall.

CH10603 is fitted with a dual-flush valve giving a 4 L reduced flush for liquid waste and a 6 L full flush for solids (4/6 LPF). Against older single-flush WCs that use 9–13 L per flush, the half-flush cuts water per liquid visit by roughly two-thirds, typically lowering total toilet water consumption by 25–30% across a household. It supports EU Water Label, UK Water Label and WELS (Australia/NZ) efficiency marking where required.

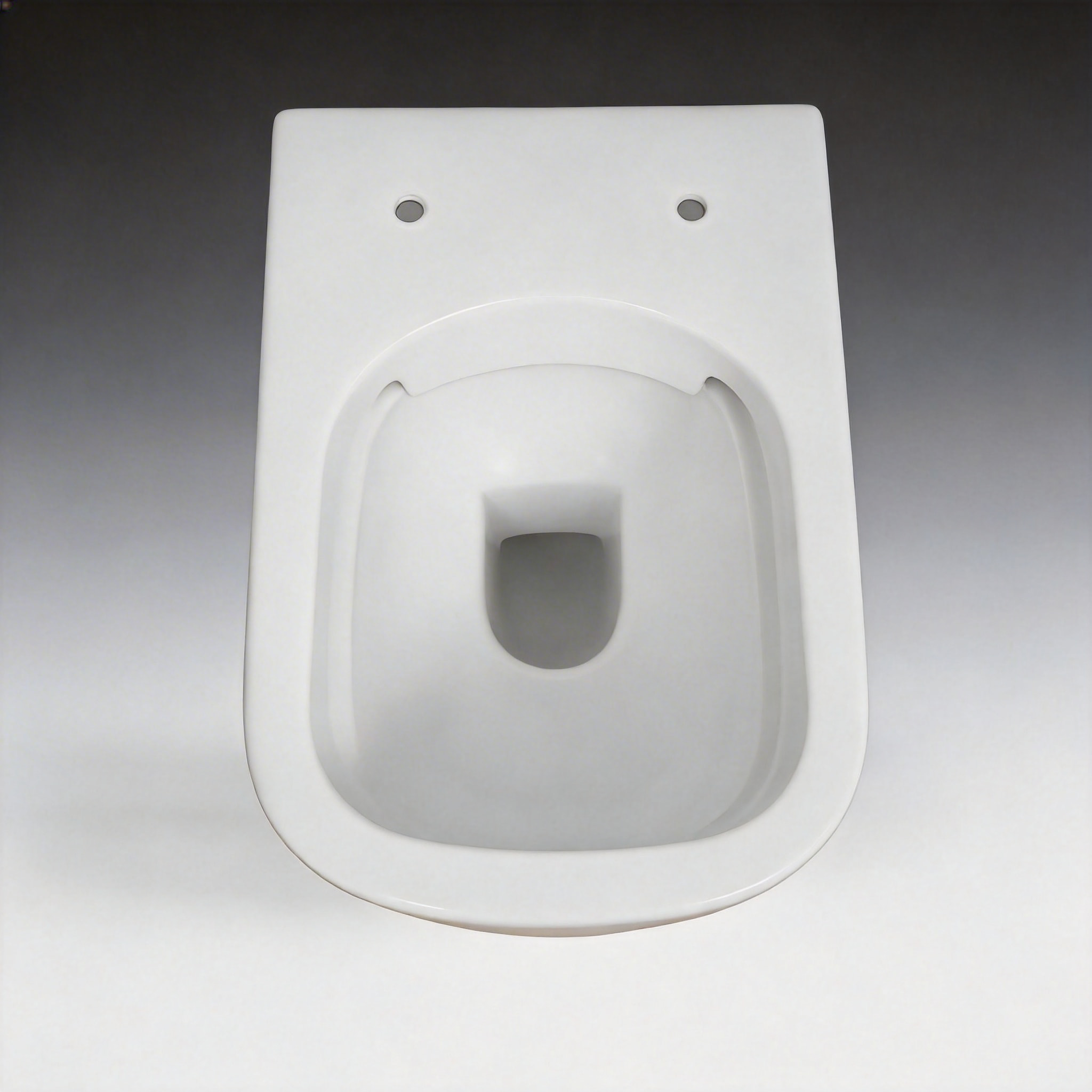

CH10603 uses an open-rim (rimless) bowl with no concealed rim cavity for dirt and bacteria to hide. Water is delivered straight into the bowl through a fully glazed rim channel for even, efficient coverage, so a single flush clears the bowl cleanly. Daily care is a quick wipe around the open rim — no need to scrub under a boxed rim. The optional nano self-cleaning antibacterial glaze further slows limescale and stain build-up, and the quick-release UF/PP seat lifts off in seconds for thorough cleaning.

CH10603 is supplied with a UF (duroplast) or PP soft-close, quick-release seat sized for its bowl (body width 360 mm). The quick-release hinge removes the seat in seconds for deep cleaning, and the adjustable hinge spacing (typically 70–170 mm) fits the pan. Top-fix installation is ideal for wall-hung setups where under-pan access is limited — the seat fixes from above into the pan's seat anchors.

CH10603 is built to the four mainstream certification paths for export WCs: cUPC (North America), CE (EU), UKCA (United Kingdom) and WaterMark (Australia/New Zealand). Certificate numbers and test reports are available on request — tell us your destination market and the specific standards your import requires, and we will confirm the documentation.

CH10603 measures 520 mm deep x 360 mm wide x 365 mm high and weighs approximately 24.9 KG (net pan only, excluding the concealed frame). Because it is wall-hung, the 365 mm height is the pan profile above the floor and there is no pedestal or floor junction to plan around. Allow clearance for the concealed frame inside the wall and standard front/side space for comfortable use; confirm the 55 mm P-trap wall-outlet position and the frame height against your rough-in before installation.
