Custom Ceramic Glaze Matching
Standard white stock finish, with custom colors available on requestTwo-Piece Rimless Back-To-Wall Soft-Square Toilet Manufacturer | cUPC CE UKCA WaterMark WC TAITAO-CT10603C
The CT10603C interprets the soft-square form in a slightly lighter build — the same crisp, radiused bowl and rimless interior, at 48.25 kg for easier handling. The back-to-wall fit hides its plumbing, and the 4/6L dual flush keeps water use efficient. Finished with a UF soft-close seat and set for the 180mm P-trap standard. cUPC, CE, UKCA and WaterMark available on request for wholesale and OEM.
Ready Mold Product Specs & Supply Terms
Mass Production Model • Active Mold #TAITAO-CT10603C
- Product Name
- TAITAO CT10603C Two-Piece Rimless Back-To-Wall Soft-Square Toilet (P-Trap 180mm)
- Type
- Two-Piece Rimless Back-To-Wall Soft-Square Toilet
- Material
- Premium Vitreous China (Ceramic)
- Ceramic Firing Temp
- 1280 °C
- Water Absorption Rate
- < 0.2%
- Glaze Options
- Standard / Nano Optional
- Trapway & Structure
- Rimless · Fully Glazed Trapway · Soft-Square Bowl
10-Year ceramic body warranty · 1-Year flushing mechanisms & accessories
Coverage applies to verified manufacturing defects — assessed from photos or videos before any remedy is issued. Remedy is 1:1 replacement or order credit.
6 Technical Core Highlights of Model TAITAO-CT10603C
Every detail engineered to satisfy rigid Western plumbing codes, zero-defect quality control, and effortless sanitation maintenance.
1280°C Tunnel-Kiln Vitrification
Formed from premium vitreous china and fired at 1280°C in tunnel kilns, yielding a dense porcelain body with moisture absorption below 0.2% — guarding against odour soak-in and glaze crazing across decades of use.
Rimless High-Efficiency Washdown
The open-rim design sweeps water across the whole bowl surface from rim to outlet — no concealed rim cavity for microbes or scale. Dual Flush 4/6 LPF keeps running costs low while meeting EU/UK/AU efficiency marks.
Standard & Optional Nano Glaze
Select the ceramic surface to match project tier and budget: 1. Standard High-Gloss Vitreous Glaze (default). 2. Nano Self-Cleaning Antibacterial Glaze (optional, on request).
P-Trap Outlet & Fully Glazed Trapway
A 180 mm P-trap wall outlet and a fully glazed internal channel evacuate waste reliably. The 102 mm outlet diameter aligns with common European pan connectors and fitment standards.
UF/PP Soft-Close Seat, Quick Release
Fitted with a durable UF or PP soft-close seat and quick-release hinge for fast deep cleaning. The soft-square bowl brings a contemporary squared profile and comfortable seating geometry.
Two-Piece Rimless Soft-Square Back-To-Wall
A modern two-piece silhouette with close-coupled ceramic cistern and rimless soft-square bowl. The 660 × 375 × 845 mm envelope fits standard bathroom plans, while the 48.25 KG net weight balances robustness with easy handling.
Where CT10603C Works Best
From family bathrooms and rental properties to food-service and showroom specification, the two-piece rimless back-to-wall CT10603C suits global projects — close-coupled ceramic cistern, rimless soft-square bowl, 180 mm P-trap rough-in, 4/6 LPF dual flush, and three finish options.
Residential Apartments & Homes
The rimless soft-square bowl and full-size 660 mm length suit everyday family bathrooms, while the close-coupled cistern keeps installation simple and maintenance accessible. Rimless washdown flushing and 4/6 LPF dual flush reduce daily water use and cleaning effort.
Airbnb & Short-Term Rentals
Hosts benefit from a familiar two-piece form that guests intuitively understand, plus an open-rim bowl with no hidden rim cavity for faster, more thorough cleaning between check-ins. The soft-close seat and dual-flush cistern also cut noise complaints and utility costs.
Restaurants & Food Premises
Cafés, restaurants and commercial washrooms where hygiene audits matter. The rimless bowl and fully glazed trapway reduce hidden dirt traps, while high-efficiency washdown flushing supports efficient daily sanitisation.
Showrooms & Specification Projects
Architects and wholesalers specifying for residential developments. The two-piece rimless back-to-wall form, soft-square bowl, three finish options and global certifications (CE / UKCA / cUPC / WaterMark) provide a standards-compliant, easy-to-source choice.
TAITAO-CT10603C Two-Piece Rimless Back-To-Wall Soft-Square Toilet Blueprint & Technical Dossier
Architectural-grade CAD drawings and factory-traced dimension matrix for architects, OEM/ODM sanitaryware importers, and wholesale distribution.
Technical Dimension Matrix & Capacity
Official factory parameters for architects, building contractors, and sanitaryware importers.
- Model ID & Type
- TAITAO-CT10603C (European Back-to-Wall WC)
- Overall Dimensions (L x W x H)
- 660 x 375 x 845 mm
- Bowl / Seat Width
- 360 mm
- Bowl Opening Dimensions (L x W)
- 430 x 360 mm
- Cistern / Tank Dimensions (D x W)
- Close-Coupled Ceramic Cistern
- Cistern Type
- Close-Coupled Ceramic Cistern
- Rough-In
- 180mm outlet center height
- Drainage Type
- P-trap (U-trap Seal)
- Waste Outlet Diameter (OD)
- 102 mm
- Seat Height
- 420 mm
- Flushing System
- High-Efficiency Washdown (Rimless)
- Water Consumption
- Dual Flush 4/6LPF
- Net Weight
- 48.25 KG
Low-Maintenance Hygiene by Design
TAITAO-CT10603C is designed for low-effort hygiene. The open-rim (rimless) bowl, fully glazed trapway and optional nano self-cleaning glaze remove the hidden rim cavity where grime and limescale usually collect — so daily upkeep stays quick and light on chemicals.

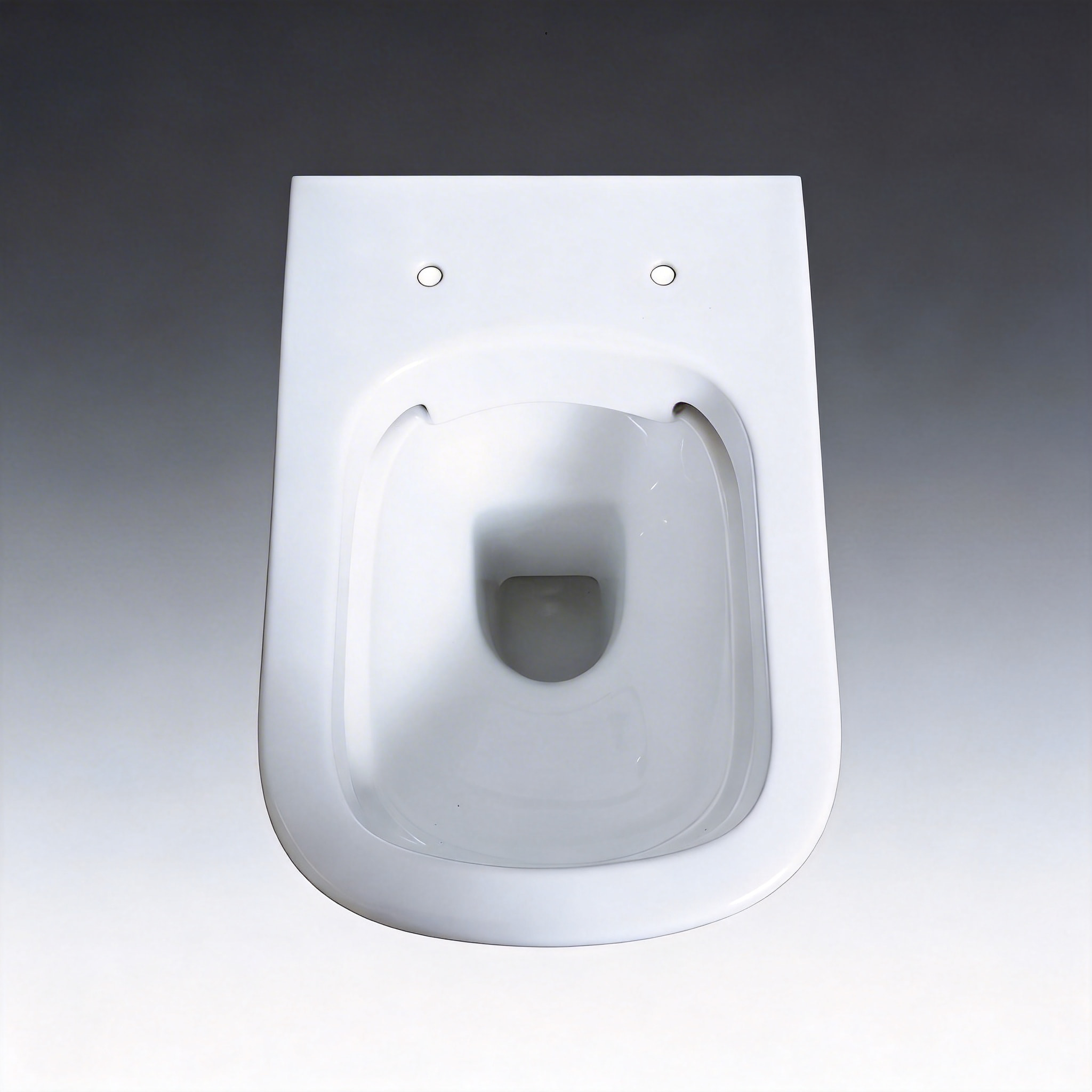

Rimless bowl
No boxed rim cavity means the whole bowl interior is open and reachable. A quick wipe along the rim line and bowl face handles everyday cleanliness.
Optional nano glaze
Available with an optional nano self-cleaning antibacterial glaze. Its smooth, low-porosity skin resists stain and scale adhesion, cutting scrub time.
Gentle daily cleaning
Use a mild, non-abrasive liquid cleaner with a soft sponge or cloth. Avoid steel wool, scouring powders and long contact with bleach or strong acids that can dull the glaze.
Seat & cistern lid
Wipe the UF/PP seat and cistern lid with a damp cloth and mild detergent, then dry. Do not soak the hinges, and keep solvent sprays off the seat cover.
CT10603C Matching Components
Model CT10603C is a two-piece toilet supplied with its own close-coupled ceramic cistern (tank) — pan and tank ship as one matched set. No concealed in-wall frame or wall actuator plate to source. The standard accessories below are quoted and supplied with the unit.
UF/PP Soft-Close Seat
Matched with our urea-formaldehyde (UF) or polypropylene (PP) soft-close seat with quick-release hinge — durable, hygienic and quiet. Supplied with the pan or specified per project.
Dual-Flush Push Button
The 4 L / 6 L dual flush is driven by a push button on the cistern lid — no separate wall plate needed. Mechanical actuation, pneumatic option available.
Cistern Internals Kit
Inside the tank, a fill valve and flush (discharge) valve complete the dual-flush mechanism, compatible with common 1/2" supply lines and local plumbing norms.
Pan Connector & Inlet Hose
The 180 mm P-trap wall outlet meets the drainage via a standard pan connector and outlet seal, while a flexible inlet hose links the wall supply to the tank.
Dual Flush 4/6L — Less Water, Same Clean
Model CT10603C pairs a 4 L / 6 L dual-flush system with a rimless soft-square bowl and a fully glazed 102 mm trapway. A rimless washdown bowl needs less water for a full rinse, lowering operating cost and environmental load without sacrificing hygiene. The model supports EU Water Label, UK Water Label and WELS (Australia/NZ) efficiency labelling where required.
Dual Flush 4 / 6 LPF
A 4 L partial flush for liquid waste and a 6 L full flush for solids. Against older 9-13 L single-flush WCs, daily household toilet water use typically drops 20-30%.
Soft-Square Bowl Geometry
The soft-square bowl interior works with the rimless washdown flush for efficient water coverage, helping one flush clear the bowl.
Fully Glazed Trapway
A 102 mm fully glazed internal passage reduces blockages and repeat flushes, so a single flush is usually enough.
Market Water Labels
Supports EU Water Label, UK Water Label and WELS (Australia/NZ) efficiency labelling on request — certificate numbers available on request.
Compliance for North American & European Markets
Supporting North American and European market access; certificate numbers on request.
cUPC
IAPMO-listed for the United States and Canada. Certificate file number available on request.
European Comfort Height
European comfort rim height eases sitting and standing for residential, senior living, and hospitality installations.
CE
European standard compliance. 400 kg (880 lbs) static load test passed with zero structural deflection.
CT10603C ISTA-3A Drop-Tested Packaging System
Engineered for ocean freight, drop-shipping, and FCL container loading — every carton passes 10-point rotational drop testing before mass production release.
5-Layer Honeycomb Carton + EPS Molded Enclosure
Ceramic sanitaryware demands rigorous packaging engineered to withstand rough ocean freight handling and drop-shipping logistics. Every TAITAO-CT10603C toilet set can be outfitted with custom-molded Expanded Polystyrene (EPS) foam cushioning, providing complete shock-absorbing isolation for the ceramic bowl, water tank, and seat cover.
10-point rotational drop test passed with 0% ceramic fractures.
Wooden corner guards & plastic stretch wrapping for ocean freight.
Full-color artwork, UPC barcodes, and installation instructions.
Passes e-commerce parcel handling specs without secondary boxing.
Custom OEM/ODM Toilet Manufacturing Process
Custom toilet manufacturing is a specialized industrial engineering process. From initial concept and hydraulic 3D modeling to CNC steel molds, kiln sample firing, and global certifications, our factory guides every phase to turn your exclusive sanitaryware design into mass-produced reality.
Custom Toilet Mold Development & Precision CNC Tooling Engineering
Why Top Brands Choose Our Kiln Line
Automated precision control from mud preparation to computerized packaging.
Continuous 18-hour tunnel kiln firing cycle ensures full porcelain vitrification with <0.2% water absorption rate.
High-precision steel mold CNC fabrication maintains accurate shrinkage tolerances across 100,000+ unit runs.
Every ceramic bowl undergoes automated air-vacuum leak inspection.
Rapid turnaround from hydraulic CAD simulation to first-article sample dispatch with guaranteed NDA exclusivity.
Requirements & Code Specs
Target-market plumbing standards (cUPC, CE, UKCA, WaterMark), rough-in dimensions, flushing mechanics, and aesthetic styling.
3D CAD & Mold Design
3D modeling of body geometry, glaze trajectory, and mold tooling design with DFM optimization and hydraulic simulation.
In-House Mold Fabrication
High-precision CNC steel master and plaster production molds machined 100% in-house for high-pressure slip casting lines.
1280°C Firing & Golden Sample
Slip casting, nano-glaze spray application, and sample firing in 1280°C computerized tunnel kilns to adjust for ceramic shrinkage.
Mass Production & Inline QC
High-pressure casting, 6-axis robotic electrostatic glaze, and automated kiln firing with in-line dimensional laser inspections.
Final QC & Export
100% leak and load testing, ISTA-3A drop-tested honeycomb cartons, container loading supervision, and export documentation.
Enterprise OEM / ODM Customization Capabilities
Flexible private labeling options for sanitaryware brands, developers, and regional distributors.
Laser Branding & Logo
Permanent high-precision laser logo etching on ceramic tank lids, flush button caps, and seat cover badges.
Custom Glaze Finishes
Pantone / RAL ceramic glaze color matching (Matte Black, Slate Gray, Cashmere, Pearl White, Dual-tone).
Hardware & Button Plating
Dual-flush button plating: Chrome, Matte Black, Brushed Gold, Gunmetal Gray, Rose Gold with Geberit / R&T valves.
Custom Packaging & Manuals
Full-color 5-layer export boxes with brand graphics, barcode labels, and custom language installation guides.
Custom Mold Lead Time: 60 Days • Initial Evaluation Samples Available • Confidential NDA Guaranteed
Toilet
Master Series
Complete Product Catalog
The TAITAO Complete Toilet Series Catalog
Our 2026 Master Product Catalog covers the complete TAITAO lineup of premium vitreous china toilets — one-piece, two-piece, back-to-wall, wall-hung and rimless washdown designs, high-efficiency dual-flush systems, fully glazed trapways, UF/PP soft-close quick-release seats, metric rough-in configurations and global OEM/ODM manufacturing capabilities. The full 26-page catalog and the complete 2D CAD packages are published in the TAITAO Download Center; per-model spec sheets are downloadable on each product page.
Complete Toilet Lineup
One-Piece, Two-Piece, Back-to-Wall, Wall-Hung & Rimless Toilets
Global B2B Certifications
cUPC (US/CA) · CE & UKCA (EU/UK) · WaterMark (AU/NZ)
The full 26-page catalog and the complete 2D CAD packages are listed in the Download Center.
Explore TAITAO's Complete Ceramic Sanitaryware Portfolios
Direct-factory OEM/ODM manufacturing across kitchen & bathroom ceramic fixtures. Sourced by global distributors, real-estate project developers, and private-label brand owners.
FFC Fine Fireclay Kitchen Sinks
Heavy-duty FFC (Fine Fireclay) workstation & apron-front farmhouse sinks engineered with cUPC-listed non-porous glazes, sliding accessory tracks, and 1280°C kiln vitrification.
Toilets & Water Closets
High-efficiency ceramic toilets with rimless washdown flushing technology, nano-antibacterial glazes, and international water-saving compliance.
Bathroom Wash Basins
Precision vitrified china vanity basins, countertop vessel sinks, and pedestal wash basins designed for commercial developments and luxury residential baths.
Related Back-To-Wall Toilets
TAITAO CT11815C — Two-Piece Rimless Back-To-Wall Toilet
620 x 375 x 835 mm · 51.05 KG
TAITAO CT10204R — Two-Piece Rimless Round-Front Toilet
740 x 460 x 865 mm · 44.15 KG
TAITAO CT10406 — Two-Piece Back-To-Wall Soft-Square Toilet
600 x 380 x 780 mm · 36.45 KG
TAITAO-CT10603C Frequently Asked Questions
Questions most often asked by importers and specifiers about Model CT10603C — answered by our factory team based on the model's actual specifications.
