Custom Ceramic Glaze Matching
Standard white stock finish, with custom colors available on requestOne-Piece Siphonic Floor-Mounted Toilet Manufacturer | cUPC CE UKCA WaterMark WC TAITAO-CA10910
Cast as a single seamless body, the CA10910 is the one-piece statement of the range: no joint line between tank and bowl to collect grime, and no gasket to leak. Its siphonic flush builds a full-trap siphon that pulls the bowl clean in one strong action, with a 4/6L dual flush to manage water. Set for the 295mm S-trap rough-in with a UF soft-close seat. cUPC, CE, UKCA and WaterMark available on request for wholesale and OEM supply.
Ready Mold Product Specs & Supply Terms
Mass Production Model • Active Mold #TAITAO-CA10910
- Product Name

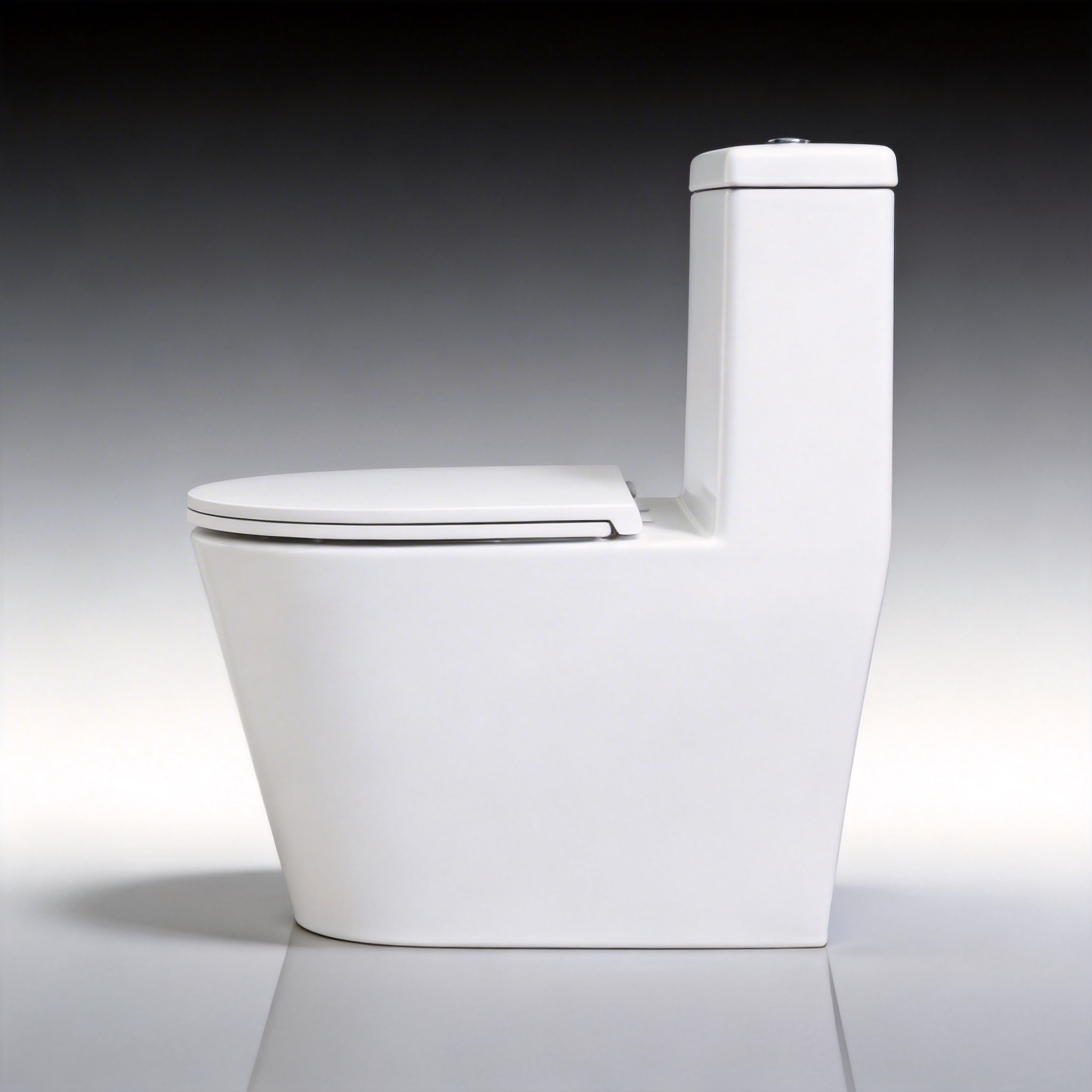

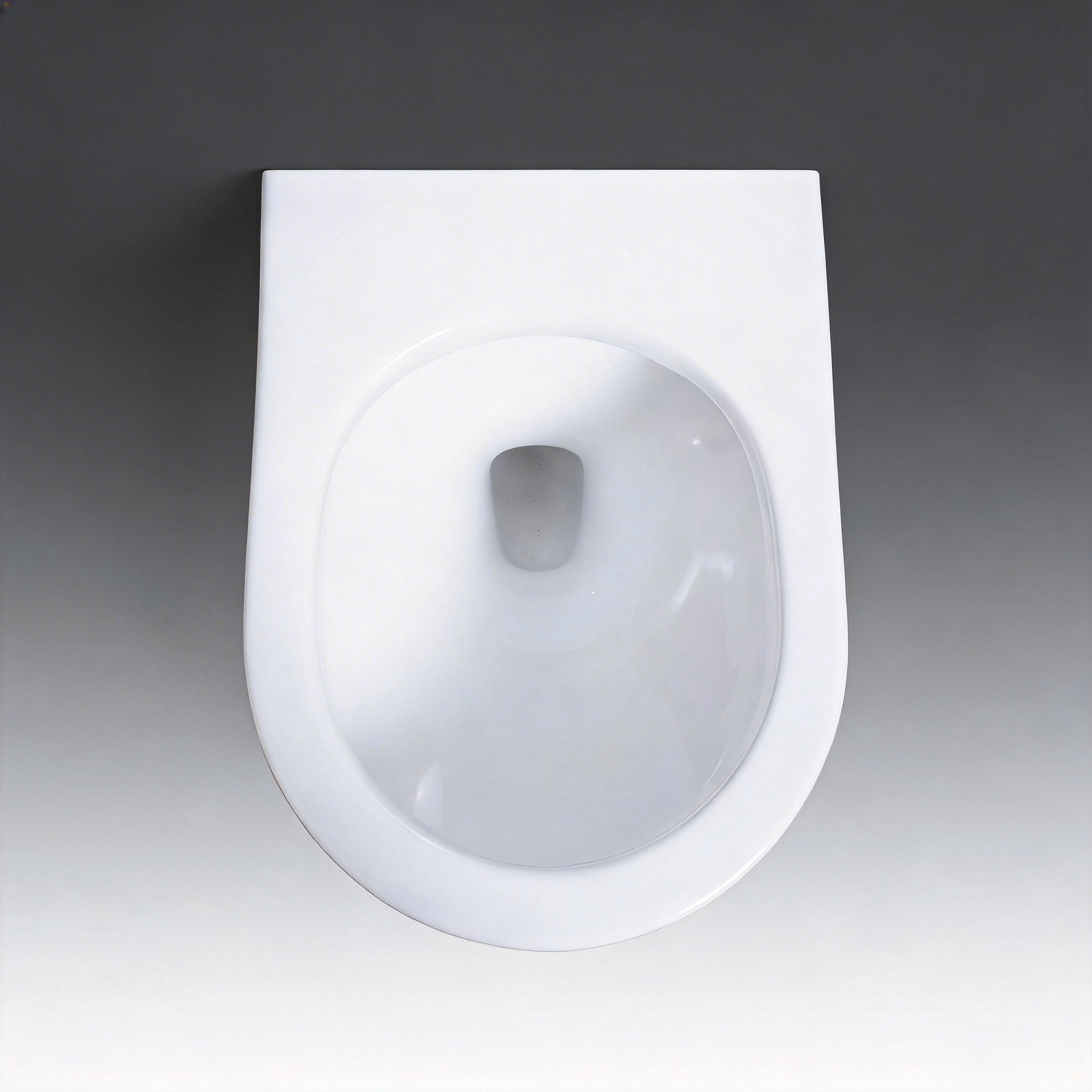

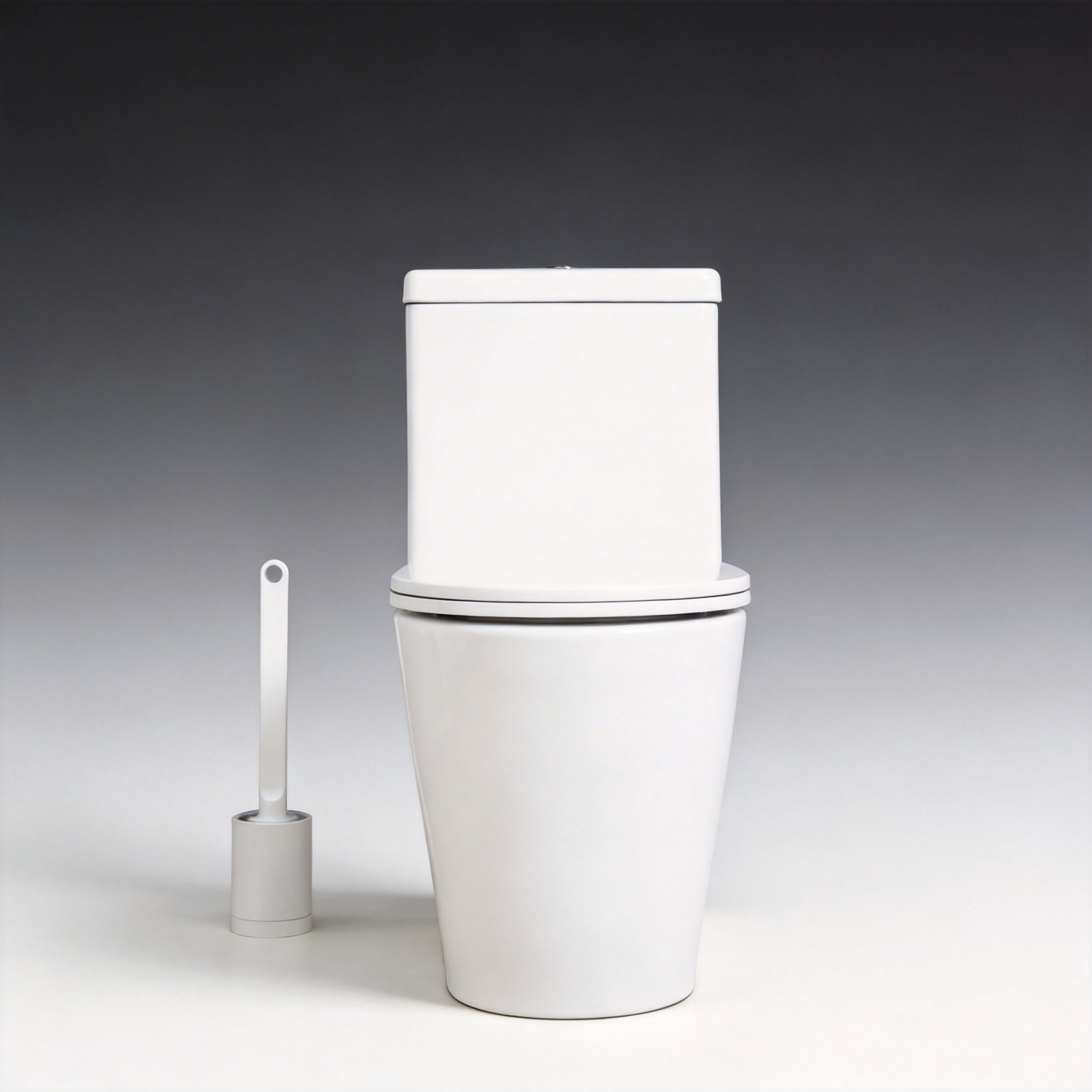

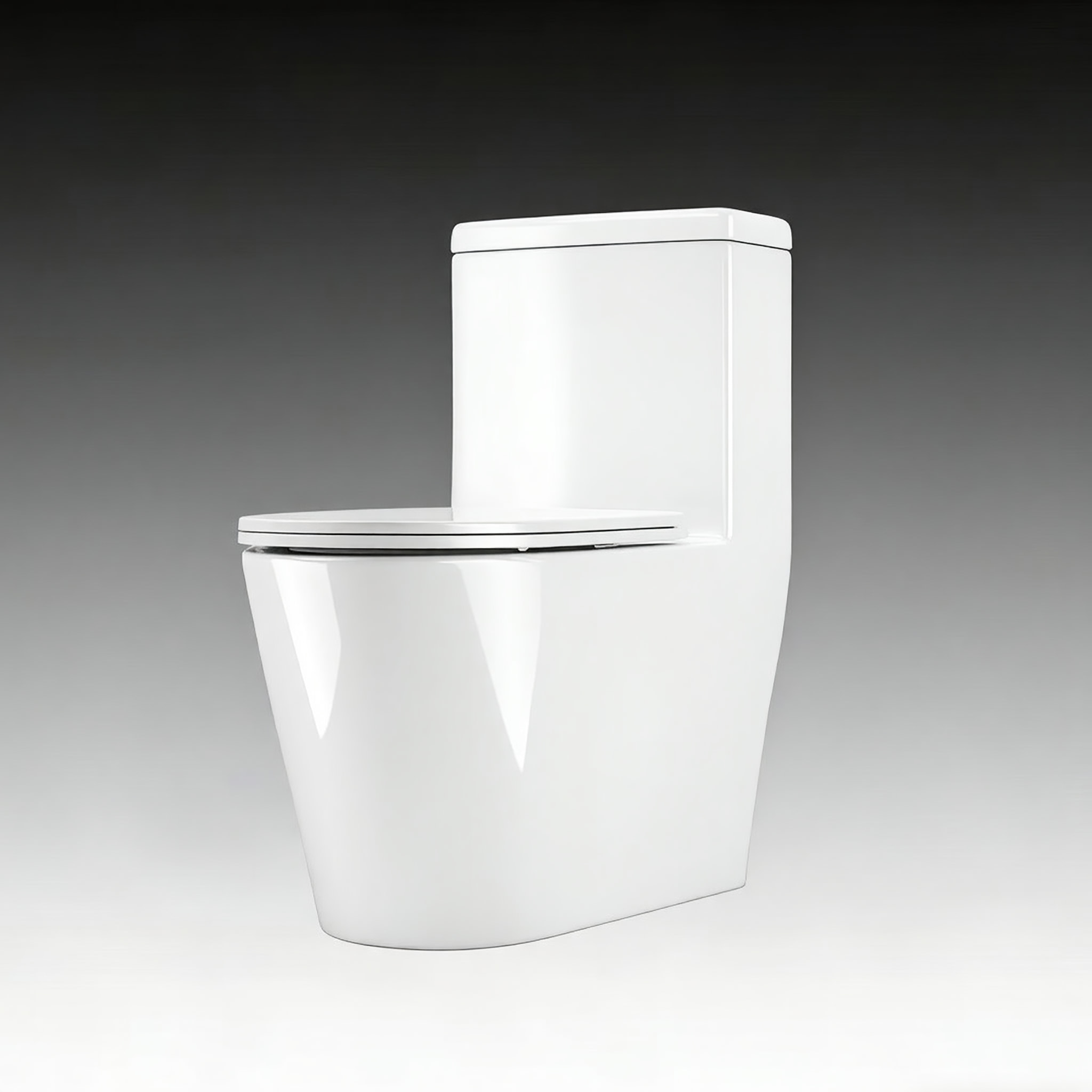

- TAITAO CA10910 One-Piece Siphonic Floor-Mounted Toilet (S-Trap 295mm)
- Type
- One-Piece Siphonic Floor-Mounted Toilet
- Material
- Premium Vitreous China (Ceramic)
- Ceramic Firing Temp
- 1280 °C
- Water Absorption Rate
- < 0.2%
- Glaze Options
- Standard / Nano Optional
- Trapway & Structure
- Rimmed · Fully Glazed Trapway
10-Year ceramic body warranty · 1-Year flushing mechanisms & accessories
Coverage applies to verified manufacturing defects — assessed from photos or videos before any remedy is issued. Remedy is 1:1 replacement or order credit.
6 Technical Core Highlights of Model TAITAO-CA10910
Every detail engineered to satisfy rigid Western plumbing codes, zero-defect quality control, and effortless sanitation maintenance.
1280°C Tunnel Kiln Vitrification
Cast from premium vitreous china ceramic formulations and vitrified at 1280°C in tunnel kilns. Results in ultra-dense porcelain core with low moisture absorption (<0.2%), preventing odor penetration and glaze micro-cracking over decades.
High-Efficiency Siphonic Washdown Flush
High-efficiency siphonic washdown flushing creates a strong siphon draw that clears the bowl with less water noise and splashing. Paired with a 4 L / 6 L dual flush for flexible water savings.
Standard & Nano Self-Cleaning Glaze Options
We offer flexible ceramic surface specifications for OEM/ODM orders so you can select the ideal glaze according to project tier and budget requirements: 1. Standard High-Gloss Vitreous Glaze (default). 2. Nano Self-Cleaning Antibacterial Glaze (optional, on request).
One-Piece Integrated Tank Design
The pan and cistern are vitrified as a single seamless unit — no separate tank joint, fewer leak paths, and a cleaner silhouette that is easier to wipe down. Floor-mounted S-trap installation needs no in-wall frame.
49 KG Stable Floor-Mounted S-Trap
Compact 660 × 360 × 770 mm footprint with a floor-mounted S-trap (295 mm rough-in from wall) suits standard bathroom rough-ins. The stable one-piece base simplifies transport, handling and on-site installation.
Fully Glazed 102mm Siphonic Trapway
A 102 mm fully glazed internal passage supports the siphonic action and reduces blockages and repeat flushes, so a single flush is usually enough — keeping maintenance low for contractors and end users.
Where CA10910 Works Best
From family bathrooms and rental properties to food-service and showroom specification, the one-piece siphonic floor-mounted CA10910 suits global projects — integrated vitrified tank, rimmed bowl, siphonic washdown flush, S-trap 295 mm rough-in, 4/6 LPF dual flush, and three finish options.
Residential Apartments & Homes
The seamless one-piece form with integrated tank suits everyday family bathrooms, while the floor-mounted S-trap (295 mm) fits standard rough-ins without an in-wall frame. A siphonic washdown flush and 4/6 LPF dual flush reduce daily water use and keep the bowl quiet and clean.
Airbnb & Short-Term Rentals
Hosts benefit from a familiar one-piece silhouette guests intuitively understand, plus a rimmed bowl and integrated tank with no separate joint to collect grime. The soft-close seat and dual-flush cistern also cut noise complaints and utility costs between check-ins.
Restaurants & Food Premises
Cafés, restaurants and commercial washrooms where hygiene audits matter. The smooth one-piece exterior wipes down in one pass, and the fully glazed 102 mm trapway with siphonic washdown flushing supports efficient daily sanitisation.
Showrooms & Specification Projects
Architects and wholesalers specifying for residential developments. The one-piece siphonic floor-mounted form, three finish options and global certifications (CE / UKCA / cUPC / WaterMark) provide a standards-compliant, easy-to-source choice.
TAITAO-CA10910 One-Piece Siphonic Floor-Mounted Toilet Blueprint & Technical Dossier
Architectural-grade CAD drawings and factory-traced dimension matrix for architects, OEM/ODM sanitaryware importers, and wholesale distribution.
Technical Dimension Matrix & Capacity
Official factory parameters for architects, building contractors, and sanitaryware importers.
- Model ID & Type
- TAITAO-CA10910 (European Back-to-Wall WC)
- Overall Dimensions (L x W x H)
- 660 x 360 x 770 mm
- Cistern / Tank Dimensions
- Integrated One-Piece Tank
- Cistern Type
- Integrated One-Piece Tank
- Rough-In
- 295 mm rough-in (distance from wall to centre of floor outlet)
- Drainage Type
- S-trap (Floor Outlet)
- Waste Outlet Diameter (OD)
- 102 mm
- Flushing System
- High-Efficiency Siphonic Washdown
- Water Consumption
- Dual Flush 4/6L
- Net Weight
- 49 KG
Low-Maintenance Hygiene by Design
TAITAO-CA10910 is engineered for low-maintenance hygiene. The rimmed bowl, fully glazed trapway and optional nano self-cleaning glaze reduce the surfaces where dirt and limescale can accumulate — so routine care stays quick and chemical-light.
Rimmed bowl
The rim guides water evenly around the bowl on each flush. A quick wipe of the rim and bowl interior after use is enough for daily hygiene.
Optional nano glaze
Available with an optional nano self-cleaning antibacterial glaze. Its smooth, low-porosity surface helps resist stain and limescale adhesion, cutting down on scrubbing.
Gentle daily cleaning
Use a mild, non-abrasive liquid cleaner with a soft sponge or cloth. Avoid steel wool, scouring powders and prolonged contact with bleach or strong acids that can dull the glaze.
One-piece seam-free care
The integrated tank leaves no separate tank joint to collect dust or grime, so the exterior and base wipe clean in one pass — ideal for high-traffic commercial washrooms.
CA10910 Matching Components
Model CA10910 is a one-piece toilet with an integrated vitrified tank — supplied as a single matched unit. There is no concealed in-wall cistern frame or separate tank to source. The standard accessories below are quoted and supplied together with the unit.
UF Soft-Close Seat
Pairs with our urea-formaldehyde (UF) or PP soft-close seat with quick-release hinge — durable, hygienic and silent. Supplied with the unit or specified per project.
Dual-Flush Push Button
A slim chrome/white push button on the integrated tank lid operates the 4 L / 6 L dual flush. Matching finishes available for OEM/ODM orders.
Fill & Flush Valves
Pre-assembled fill valve and flush mechanism are built into the integrated tank, compatible with common 1/2" supply lines and local plumbing standards.
Wax Ring & Fixings
A wax ring gasket and mounting bolts/fixings seal the floor-mounted S-trap outlet to the closet flange for a watertight, stable installation.
Dual Flush 4/6L — Less Water, Same Clean
Model CA10910 uses a 4 L / 6 L dual-flush system paired with a siphonic washdown bowl and a fully glazed 102 mm trapway. Less water is needed for a complete rinse, lowering operating cost and environmental load without compromising hygiene. The model supports EU Water Label, UK Water Label and WELS (Australia/NZ) efficiency labelling where required.
Dual Flush 4 / 6 L
A 4 L partial flush for liquid waste and a 6 L full flush for solids. Average daily consumption stays well below older 9-13 L single-flush toilets.
Siphonic Washdown
The siphonic action draws the bowl contents away with a strong, quiet siphon — less splashing and a more thorough clear than a simple gravity washdown.
Fully Glazed Trapway
A 102 mm fully glazed internal passage reduces blockages and repeat flushes, so a single flush is usually enough.
Market Water Labels
Supports EU Water Label, UK Water Label and WELS (Australia/NZ) efficiency labelling on request — certificate numbers available on request.
Compliance for North American & European Markets
Supporting North American and European market access; certificate numbers on request.
cUPC
IAPMO-listed for the United States and Canada. Certificate file number available on request.
European Comfort Height
European comfort rim height eases sitting and standing for residential, senior living, and hospitality installations.
CE
European standard compliance. 400 kg (880 lbs) static load test passed with zero structural deflection.
CA10910 ISTA-3A Drop-Tested Packaging System
Engineered for ocean freight, drop-shipping, and FCL container loading — every carton passes 10-point rotational drop testing before mass production release.
5-Layer Honeycomb Carton + EPS Molded Enclosure
Ceramic sanitaryware demands rigorous packaging engineered to withstand rough ocean freight handling and drop-shipping logistics. Every TAITAO-CA10910 toilet set can be outfitted with custom-molded Expanded Polystyrene (EPS) foam cushioning, providing complete shock-absorbing isolation for the ceramic bowl, water tank, and seat cover.
10-point rotational drop test passed with 0% ceramic fractures.
Wooden corner guards & plastic stretch wrapping for ocean freight.
Full-color artwork, UPC barcodes, and installation instructions.
Passes e-commerce parcel handling specs without secondary boxing.
Custom OEM/ODM Toilet Manufacturing Process
Custom toilet manufacturing is a specialized industrial engineering process. From initial concept and hydraulic 3D modeling to CNC steel molds, kiln sample firing, and global certifications, our factory guides every phase to turn your exclusive sanitaryware design into mass-produced reality.
Custom Toilet Mold Development & Precision CNC Tooling Engineering
Why Top Brands Choose Our Kiln Line
Automated precision control from mud preparation to computerized packaging.
Continuous 18-hour tunnel kiln firing cycle ensures full porcelain vitrification with <0.2% water absorption rate.
High-precision steel mold CNC fabrication maintains accurate shrinkage tolerances across 100,000+ unit runs.
Every ceramic bowl undergoes automated air-vacuum leak inspection.
Rapid turnaround from hydraulic CAD simulation to first-article sample dispatch with guaranteed NDA exclusivity.
Requirements & Code Specs
Target-market plumbing standards (cUPC, CE, UKCA, WaterMark), rough-in dimensions, flushing mechanics, and aesthetic styling.
3D CAD & Mold Design
3D modeling of body geometry, glaze trajectory, and mold tooling design with DFM optimization and hydraulic simulation.
In-House Mold Fabrication
High-precision CNC steel master and plaster production molds machined 100% in-house for high-pressure slip casting lines.
1280°C Firing & Golden Sample
Slip casting, nano-glaze spray application, and sample firing in 1280°C computerized tunnel kilns to adjust for ceramic shrinkage.
Mass Production & Inline QC
High-pressure casting, 6-axis robotic electrostatic glaze, and automated kiln firing with in-line dimensional laser inspections.
Final QC & Export
100% leak and load testing, ISTA-3A drop-tested honeycomb cartons, container loading supervision, and export documentation.
Enterprise OEM / ODM Customization Capabilities
Flexible private labeling options for sanitaryware brands, developers, and regional distributors.
Laser Branding & Logo
Permanent high-precision laser logo etching on ceramic tank lids, flush button caps, and seat cover badges.
Custom Glaze Finishes
Pantone / RAL ceramic glaze color matching (Matte Black, Slate Gray, Cashmere, Pearl White, Dual-tone).
Hardware & Button Plating
Dual-flush button plating: Chrome, Matte Black, Brushed Gold, Gunmetal Gray, Rose Gold with Geberit / R&T valves.
Custom Packaging & Manuals
Full-color 5-layer export boxes with brand graphics, barcode labels, and custom language installation guides.
Custom Mold Lead Time: 60 Days • Initial Evaluation Samples Available • Confidential NDA Guaranteed
Toilet
Master Series
Complete Product Catalog
The TAITAO Complete Toilet Series Catalog
Our 2026 Master Product Catalog covers the complete TAITAO lineup of premium vitreous china toilets — one-piece, two-piece, back-to-wall, wall-hung and rimless washdown designs, high-efficiency dual-flush systems, fully glazed trapways, UF/PP soft-close quick-release seats, metric rough-in configurations and global OEM/ODM manufacturing capabilities. The full 26-page catalog and the complete 2D CAD packages are published in the TAITAO Download Center; per-model spec sheets are downloadable on each product page.
Complete Toilet Lineup
One-Piece, Two-Piece, Back-to-Wall, Wall-Hung & Rimless Toilets
Global B2B Certifications
cUPC (US/CA) · CE & UKCA (EU/UK) · WaterMark (AU/NZ)
The full 26-page catalog and the complete 2D CAD packages are listed in the Download Center.
Explore TAITAO's Complete Ceramic Sanitaryware Portfolios
Direct-factory OEM/ODM manufacturing across kitchen & bathroom ceramic fixtures. Sourced by global distributors, real-estate project developers, and private-label brand owners.
FFC Fine Fireclay Kitchen Sinks
Heavy-duty FFC (Fine Fireclay) workstation & apron-front farmhouse sinks engineered with cUPC-listed non-porous glazes, sliding accessory tracks, and 1280°C kiln vitrification.
Toilets & Water Closets
High-efficiency ceramic toilets with rimless washdown flushing technology, nano-antibacterial glazes, and international water-saving compliance.
Bathroom Wash Basins
Precision vitrified china vanity basins, countertop vessel sinks, and pedestal wash basins designed for commercial developments and luxury residential baths.
Related One-Piece Toilets
TAITAO-CA10910 Frequently Asked Questions
Questions most often asked by importers and specifiers about Model CA10910 — answered by our factory team based on the model's actual specifications.
