Custom Ceramic Glaze Matching
Standard white stock finish, with custom colors available on requestTAITAO LV11248 High-Gloss White Ceramic One-Piece Integrated Vanity Top Furniture Basin Single-Hole Mount Bathroom Sink Wholesale Manufacturer & Supplier

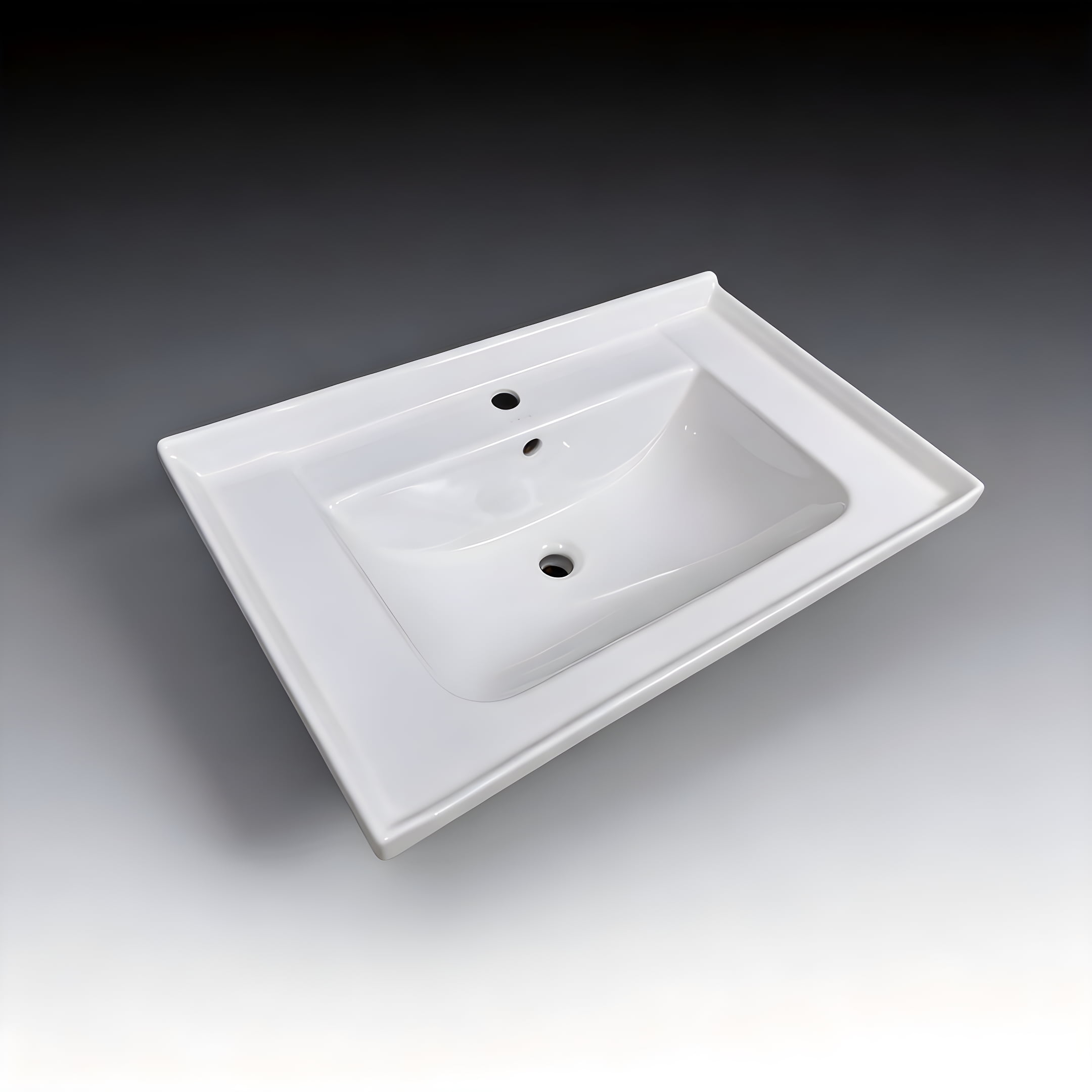

LV11248 is a high-gloss white vitreous china one-piece integrated vanity top basin: the countertop and bowl are fired as a single ceramic unit that rests directly on the bathroom vanity cabinet, eliminating the need for a separate stone or quartz countertop. With a single pre-drilled faucet hole, a front-facing integrated overflow, and a standard Ø45 mm drain, it measures 800 × 500 × 165 mm overall at 17.9 kg net and is engineered for hotel, residential, and OEM furniture vanity projects with cUPC, CE, UKCA and WaterMark compliance.
Standard Factory Specifications
10-Year ceramic body warranty
Coverage applies to verified manufacturing defects — assessed from photos or videos before any remedy is issued. Remedy is 1:1 replacement or order credit.
LV11248: 4 Structural Engineering Breakthroughs
Precision-engineered for vanity furniture, hotel fit-outs, and wholesale OEM projects — the LV11248 unites countertop and bowl in one fired ceramic unit for a seamless, easy-to-clean vanity surface.
One-Piece Integrated Vanity-Top Architecture
The countertop and bowl are cast and fired as a single vitreous china unit that rests directly on the bathroom vanity cabinet. The ceramic edge extends across the full cabinet top, so no separate stone, quartz or laminate countertop is needed — one component, one clean line.
1280°C Tunnel-Kiln Full Vitrification
Premium vitreous china is fired at 1280°C in an 18-hour continuous tunnel kiln, producing a dense, non-porous body with water absorption below 0.2%. The result resists crazing, staining, and odor absorption — even in high-traffic hotel and commercial bathrooms.
Seamless Coved Rim — Hygienic by Design
Because the top and bowl share no joint, there is nowhere for grime, water or mold to collect at the basin edge. The coved transition wipes clean in one motion, cutting daily maintenance versus rimmed drop-in basins that trap residue under the lip.
Hydrodynamic Sloped-Bowl Drainage
The inner bowl floor is shaped with a continuous slope that channels rinse water efficiently toward the central Ø45 mm drain port. This reduces standing water, soap residue, and hard-water spotting while keeping the basin hygienic between uses.
Where LV11248 Works Best
From compact residential vanities to high-turnover hospitality washrooms, the LV11248 integrated vanity top combines a seamless one-piece surface, front-overflow safety, and sanitaryware performance for importers, cabinet makers, and project specifiers.
Hotel & Hospitality Vanity Projects
The high-gloss white glaze and front-overflow channel stand up to daily housekeeping cycles, while the single-hole deck accepts a standard single-handle basin faucet for a consistent guest-room look across floor after floor.
Residential Apartments & Renovations
At 800 × 500 mm, the one-piece top drops onto standard vanity cabinets without a separate stone countertop, making it a straightforward retrofit or new-build choice for apartments and townhouses.
Furniture Vanity OEM / Cabinet Integration
Cabinet manufacturers integrate the fired ceramic top directly into their vanity production lines — one component instead of a basin plus a fabricated countertop — with minimal fitting variance.
Commercial Washrooms & Showroom Specs
cUPC, CE, UKCA and WaterMark alignment gives architects and distributors a defensible specification for offices, retail washrooms, and showroom display units that need proven compliance.
Installing the LV11248 Integrated Vanity Top
The LV11248 is a one-piece ceramic vanity top that seats directly on the bathroom cabinet — no separate countertop fabrication required. Follow these five steps and safety notes for a watertight, code-compliant fit.
Tools You'll Need
Confirm Cabinet Top & Dry-Fit
Verify the vanity cabinet top opening matches the LV11248 footprint of 800 × 500 mm. Set the one-piece unit on the cabinet dry, without sealant, and check that the ceramic edge sits square and even on all sides before final placement.
Apply a Silicone Bead to the Cabinet Edge
Run a continuous 100% silicone bead along the top face of the cabinet where the ceramic unit will seat. This forms the watertight seal between the fired ceramic and the cabinet. Avoid gaps at the corners where water can track through.
Seat the One-Piece Top Onto the Cabinet
Lower the LV11248 onto the cabinet so the ceramic edge rests flush on the cabinet top. Press evenly around the perimeter to bed the silicone, then wipe the excess from inside and outside with a damp cloth for a clean fillet.
Secure From Underside (Cabinet Fixings)
Fasten the unit to the cabinet using the cabinet maker's recommended underside brackets or clips and a light, even torque. Do not over-tighten — the ceramic edge already carries the load, and over-clamping can crack the vitreous china.
Connect Drain & Faucet, Pressure-Test for Leaks
Fit the Ø45 mm drain assembly with its gasket, mount the single-hole faucet, connect the P-trap and supply, then run water for 2–3 minutes and inspect the seal and trap joints from below. Tighten only if a weep appears, then re-test before closing up.
Important Safety Notes
- •Use ONLY 100% silicone sealant. NEVER use cement, epoxy, or expanding/grab-adhesive sealants — these harden or swell after cure and can crack the ceramic or lift the edge.
- •Wear protective gloves when handling the unit; fired vitreous china edges can be sharp.
- •Comply with local plumbing codes and the unit's rated load; engage a licensed plumber where required.
- •Do not stand or place heavy loads on the edge during installation.
TAITAO-LV11248 Integrated Vanity Top Basin Blueprint & Technical Dossier
Architectural-grade CAD drawings and factory-traced dimension matrix for architects, countertop fabricators, and sanitaryware importers.
Technical Dimension Matrix & Tolerances
Official factory parameters for architects, countertop fabricators, and sanitaryware importers.
- Model ID & Type
- TAITAO-LV11248 (Integrated Vanity Top Basin)
- External Dimensions (L × W × H)
- 800 × 500 × 165 mm
- Installation / Mounting
- Vanity-Top / Furniture-Mounted (One-Piece Integrated)
- Faucet Hole Configuration
- Single-Hole
- Standard Drain Outlet Diameter
- Ø 45 mm (1-3/4") with Overflow
- Raw Material & Vitrification
- Vitreous China • 1280°C Tunnel Kiln Fired
- Water Absorption Rate
- < 0.2%
- Unit Net Weight
- 17.9 kg
- International Compliance
- cUPC • CE • UKCA • WaterMark
Compliance for North American, European, UK & Australasian Markets
Every TAITAO-LV11248 vitreous china basin is produced for global project specification and customs clearance, with certification available on request across the United States, Canada, the European Union, the United Kingdom, and Australia / New Zealand. Certificate numbers are available on request.
cUPC
IAPMO-listed cUPC for ceramic sanitary ware. Full market access for the United States and Canada. Certificate file number available on request.
CE
Conforms to the EU Construction Products Regulation for wash basins. Accepted across the European Economic Area. Notified Body file available on request.
UKCA
Conforms to UK post-Brexit plumbing and product regulations. Market access for Great Britain. Certification file available on request.
WaterMark
Approved under the applicable Australian and New Zealand plumbing product requirements. Licence number available on request.
Engineering Compliance, Verified in the Laboratory
Every TAITAO-LV11248 basin is fired from high-density vitreous china and validated against the same international standards our certifications are issued under — so specifiers can cite tested performance, not marketing claims.
Global Certification Matrix
cUPC
Available on request
United States & Canada
CE
Available on request
European Economic Area
UKCA
Available on request
Great Britain
WaterMark
Available on request
Australia & New Zealand
Laboratory Test Regimen — EN 14688 & ASME A112.19.2
Load Resistance
1.5 kN applied over 100 cycles with no structural cracking — confirms the rim and bowl withstand sustained user and countertop loads.
Drainage Performance
6 L of water fully evacuates within 120 s, verifying the basin and waste route clear standing water without pooling.
Thermal Shock
5–80 °C temperature cycling across 5 cycles induces no glaze crazing or body cracking from hot-to-cold exposure.
Glaze Crazing
Boiling-water and dye-penetration testing shows no hairline cracks in the fired glaze — the non-porous surface stays sealed.
Water Absorption
Vitreous china is verified non-porous to below 0.5% per EN 14688, resisting staining, odor retention and bacterial growth.
Chemical Resistance
The glaze tolerates common bathroom cleaners and dilute acids without surface degradation or loss of gloss.
Low-Maintenance Hygiene by Design
The high-gloss vitreous china glaze is non-porous and stain-resistant. A few simple habits keep the LV11248 basin looking showroom-new through years of daily use.
Daily Wipe-Down
Clean with a soft cloth and a pH-neutral liquid soap after heavy use. Rinse and dry to prevent water-spot buildup in hard-water regions.
Stain & Limescale
For limescale or tea/cosmetic marks, apply a non-abrasive cream cleaner, let it dwell briefly, then wipe. Avoid leaving acidic descalers on the glaze.
Protect the Glaze
Never use steel wool, scouring powder, or abrasive pads — they microscratch the mirror finish. Use only non-scratch sponges to preserve the shine.
Overflow & Drain
Flush the integrated overflow channel and Ø45 mm drain with warm water periodically to stop residue buildup and keep wastewater flowing freely.
What Is Included With The Basin
TAITAO is a vitreous china manufacturer. Only the fired ceramic basin and its concealed mounting hardware are produced and supplied by TAITAO. Faucets, wastes, metal trims and decorative covers are customer-supplied or sourced separately.
Vitreous China Basin
The fired LV11248 body — single-piece high-gloss vitreous china, 800 × 500 × 165 mm overall, cast as a furniture-mounted vanity top — the bowl and countertop are fired as one ceramic unit that rests directly on the vanity cabinet.
Overflow & Drain Outlet
Integrated overflow channel and Ø45 mm drain outlet are cast into the ceramic body. Pop-up or click-clack waste fittings are customer-supplied; the outlet accepts all standard basin wastes.
Concealed Mounting Kit
Concealed fixing clips are supplied to seat the basin directly onto the cabinet — no countertop cut-out is required, and no visible screws on the finished face.
Faucet & Trim (Customer-Supplied)
The single faucet hole is drilled for a standard single-handle basin mixer. TAITAO does not manufacture faucets, wastes or metal trims; source them through your hardware supplier for a coordinated vanity finish.
ISTA-3A Certified Drop-Test Packaging for Global Sea & Courier Freight
Every Model LV11248 basin is encapsulated inside high-density precision molded EPS foam that suspends the fragile ceramic rim, absorbing transit vibration, rough port handling, and e-commerce courier delivery.
Custom EPS Foam Contour Cushion + 5-Ply Reinforced Corrugated Master Carton
Every Model LV11248 basin is encapsulated inside high-density precision molded EPS foam that suspends the fragile ceramic rim, absorbing transit vibration, rough port handling, and e-commerce courier delivery.
360° Custom-Contoured EPS Foam Enclosure
Thick 35mm expanded polystyrene shells molded exactly to the 800×500×165mm basin envelope prevent edge friction and internal shifting.
250 lbs/in² Bursting Strength 5-Ply Master Carton
Heavy-duty BC-flute kraft exterior box resisting high humidity during tropical ocean freight; cartons are palletized for full container load (FCL) loading and warehouse multi-layer stacking.
Full OEM Barcode & Private Brand Printing
Complimentary customized outer carton printing with your brand logo, GS1 barcodes, shipping marks, and multi-language manuals.
OEM & ODM Customization Portfolio
Tailored ceramic formulations, specialized architectural glazes, private labeling, and custom export packaging for global bathroom brands.
Architectural Glaze Finishes
Available in standard and customized ceramic surface coatings formulated in our dedicated glaze laboratory:
Private Label & Laser Branding
Establish brand exclusivity with permanent factory OEM labeling options:
High-resolution brand logo etched permanently under glaze or on basin inner slope.
High-resolution brand logo etched permanently under glaze on the basin inner slope or bottom plane.
Individual production batch codes etched on bottom plane for ISO 9001 compliance.
Custom Export Master Packaging
Engineered outer packaging tailored to your sales channel:
ISTA-3A drop-certified 5-ply cartons with molded EPS foam for Amazon/Wayfair delivery.
Full-color high-gloss laminated brand boxes with GS1 barcode and showroom handles.
Bathroom Basin
Master Series
Complete Product Catalog
The TAITAO Complete Bathroom Basin Series Catalog
Access our full 2026 Master Product Catalog featuring TAITAO's complete lineup of vitreous china bathroom basins—vessel, inset, undermount, wall-hung and pedestal designs—custom glaze finishes, precision dimensional tolerances, and global OEM/ODM manufacturing capabilities. The basin catalog and the complete 2D CAD packages are listed in the TAITAO Download Center; per-model spec sheets are downloadable on each product page.
Complete Basin Lineup
Vessel, Inset, Undermount, Wall-Hung & Pedestal Basins
Global B2B Certifications
cUPC (North America) & CE (European Union)
The basin catalog and the complete 2D CAD packages are listed in the Download Center.
Explore TAITAO's Complete Ceramic Sanitaryware Portfolios
Direct-factory OEM/ODM manufacturing across kitchen & bathroom ceramic fixtures. Sourced by global distributors, real-estate project developers, and private-label brand owners.
FFC Fine Fireclay Kitchen Sinks
Heavy-duty FFC (Fine Fireclay) workstation & apron-front farmhouse sinks engineered with cUPC-listed non-porous glazes, sliding accessory tracks, and 1280°C kiln vitrification.
Toilets & Water Closets
High-efficiency ceramic toilets with rimless washdown flushing technology, nano-antibacterial glazes, and international water-saving compliance.
Bathroom Wash Basins
Precision vitrified china vanity basins, countertop vessel sinks, and pedestal wash basins designed for commercial developments and luxury residential baths.
Related Integrated Vanity Top Basin Basins
TAITAO LV11249 — Integrated Vanity Top Basin
35-7/16" × 19-11/16" × 10-1/16" · High-Gloss White Glaze (Non-porous)
TAITAO LV11607 — One-Piece Vanity Sink Top
· High-Gloss White Glaze (Non-porous)
TAITAO LV11531 — Mid-Edge Cabinet Washbasin
· High-Gloss White Glaze (Non-porous)
Frequently Asked Questions for Model LV11248
