Large-Format Sinks: Why Casting Decides Fit

A large ceramic sink fails at geometry, not at strength. A 30 to 36 inch apron-front sink is a big, thin-walled, non-symmetrical object that contains a large volume of water before firing and shrinks as it vitrifies. Any difference in density or wall section between one region and another turns into a difference in final dimension.

On a small bathroom basin that variance is invisible. On a wide sink carrying a flat rim that has to sit against a worktop, it is the entire problem. A rim out of flat by a millimetre or two across its length will rock on a stone worktop and read as a defect even though the sink itself is sound — and the installer will spend an afternoon shimming something that should have been flat when it left the factory.

Published process data from the European ceramic industry makes the scale of the problem concrete: a fired fireclay sink can carry a linear shrinkage of up to about five per cent from forming to finished piece, and the residual variation across units can still be in the region of two per cent of size. Two per cent of a 33-inch sink is not a rounding error. It is the reason experienced fabricators template a countertop after the sink is on site rather than from the drawing alone.

Nine steps, in order, and each one can take the piece out of tolerance. The slip — a suspension of clay, quartz and feldspar, plus chamotte in a fireclay body — is mixed and de-aired under vacuum. Removing microscopic air is not optional: trapped air expands in the kiln, and its legacy is a pinhole or a blister on a surface that was otherwise perfect.

The slip is formed into shape and left to firm up. While the body is still fragile, seam lines are fettled by hand with coarse and soft sponges, edges are trued, and the waste outlet and tap holes are punched to the individual model's design. A first full quality inspection typically happens at this point, on the green body, which is the cheapest moment in the entire process to reject a piece.

Then drying, then glaze, then firing, then inspection again — and for an undermount sink, one more step after that. The sequence is not bureaucratic. Each stage is a place where a decision taken to save time turns into a dimensional problem that no later stage can remove.

Yes, and the reason is repeatability rather than speed. Traditional slip casting uses porous plaster moulds that absorb water out of the slip by capillary action. It works, it is inexpensive to tool, and it has two practical weaknesses: it is slow, and it is sensitive to the temperature and humidity of the room it happens in.

High-pressure casting injects the slip into a reusable microporous resin mould and applies pressure — commonly in the ten to fifteen bar range — to force the water out through the pores. The ceramic particles compact against the mould wall, which produces a denser, more uniform wall section, and the cycle is short enough that weather is no longer a production variable.

For a buyer, the useful framing is this. Plaster tooling can produce an excellent sink on a good day in a good month. Pressure casting removes the day and the month from the equation. If you are ordering a container of 33-inch apron sinks and they all have to fit the same cabinet run, that difference is not a technicality — it is your warranty exposure.

An unfired sink has no strength to speak of and holds a large amount of water in a thick, uneven wall section. Everything that happens to it now is a potential permanent distortion, because the geometry it is given at this stage is the geometry the kiln will freeze.

Three things matter. Fettling has to be done without loading the rim — a heavy hand on a wide apron is how an otherwise sound body gets pushed out of flat. Handling has to avoid point loads, which is why ejection is done with air assistance rather than by pulling the piece off the tool. And the piece has to be moved into drying without being supported on the surfaces that will later have to be flat.

This is also where the first real inspection belongs. A crack or a dimensional deviation found on a green body costs the factory nothing to replace. The same defect found after firing has already consumed the most expensive part of the process, which is precisely why factories that inspect only at the end have both a scrap problem and a quality problem.

Drying looks like waiting. It is actually where a large body acquires or loses its flatness. Water has to leave the thick sections at roughly the same rate as the thin ones; if one region dries ahead of another, the shrinkage that accompanies water loss happens unevenly, and the body takes a set that firing will not undo.

Large formats are not dried on a fixed clock. The body spends several days at room temperature first, and the dryer then follows a controlled cycle that brings the temperature up slowly enough that the thicker sections are not chasing the thinner ones. The schedule is written per model rather than applied across the range, because the section that dries last is what sets the pace. That is not inefficiency. It is the cost of the size.

The practical consequence for a buyer is that a supplier who can quote you a very short production time on a very large sink is telling you something about the drying stage, whether they intend to or not.

Enough that the tool has to be built oversized on purpose. During firing the body densifies and the piece shrinks; published process data for fireclay sinks puts full-range linear shrinkage at up to about five per cent, with residual unit-to-unit variation around two per cent of dimension.

Which means the mould is not a copy of the drawing. It is the drawing plus a shrinkage allowance, distributed across the geometry — and the distribution is where factories differ. A uniform allowance applied to a non-uniform object is one of the quiet causes of a rim that will not sit flat, because a thick apron section and a thin wall do not shrink by the same amount.

Ask a supplier how the allowance is applied: uniformly, or by region against a dimensional plan. The answer tells you whether the tool was designed or estimated.

Three places, and only one of them is inside the kiln. The first is fettling and handling while the body is green, described above. The second is drying, described above. The third is firing itself — and it is the stage with the least room for adjustment, because the kiln is doing two jobs at once.

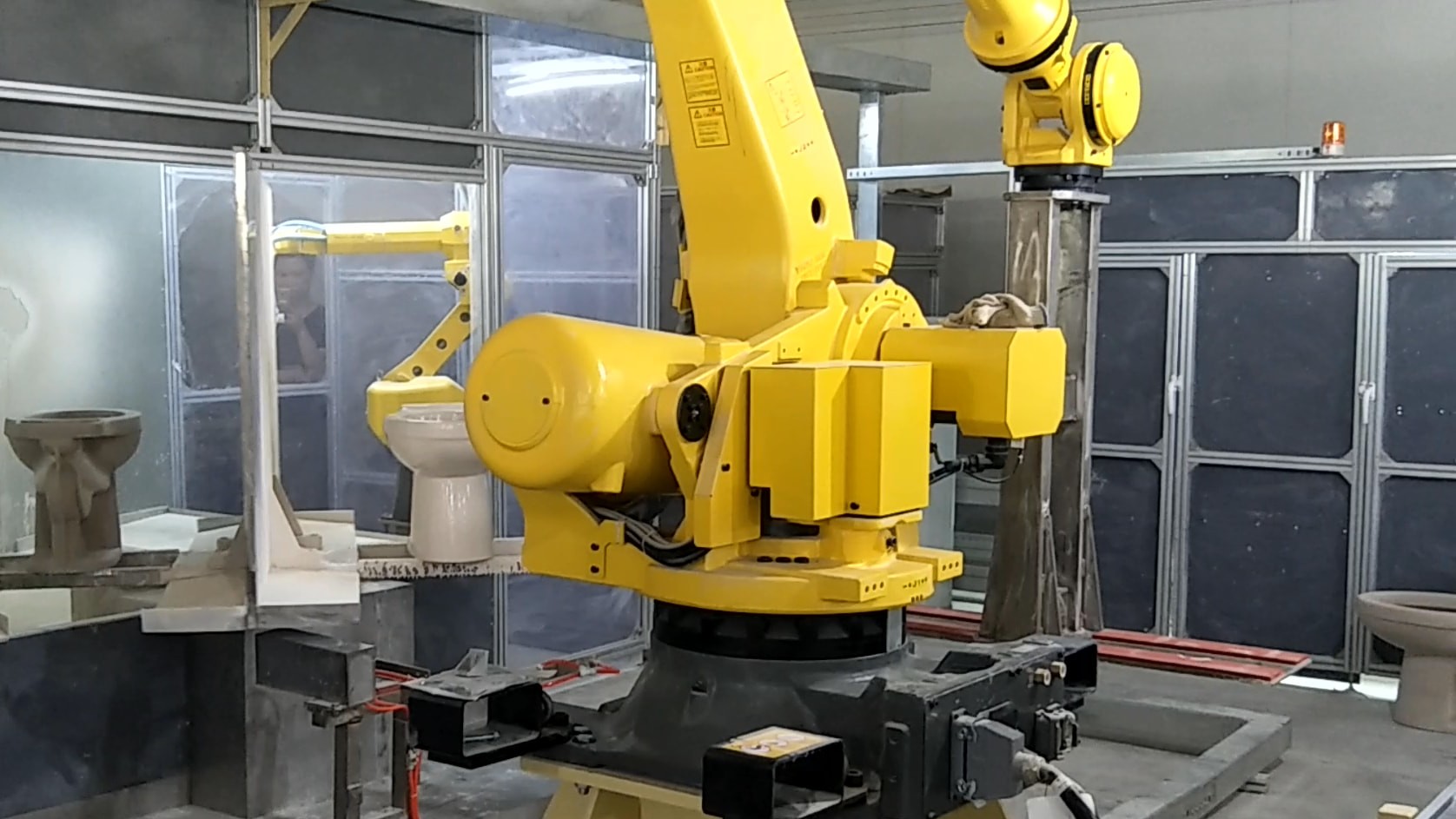

In one pass the body vitrifies into its final dense ceramic and the glaze matures into the surface the customer will actually touch. That single cycle is why a factory cannot simply fire faster to raise output: the schedule is a quality parameter, not a production dial. A faster cycle changes both the dimensional outcome and the glaze result, and usually in ways that only appear in the third batch.

This is the step most buyers have never been told about, and it is the one that decides whether an undermount sink sits properly. The rim of a fireclay sink is not glazed on the surfaces where it will be bonded or seated. For an undermount installation, that unglazed mounting rim is ground flat after firing so it can meet the underside of the worktop cleanly.

Good factories go further and level the installation surface by wet grinding with rotating discs, because the flatter the mounting face is, the more reliable the seal and the less the installer has to compensate with sealant. A glaze that looks perfect tells you nothing about this step; it happens on surfaces you will not see once the sink is installed.

Two questions follow. Is the mounting rim ground, and how flat is it allowed to be? And if the sink is a top-mount or flush design, is the relevant face checked with the same discipline? The answers are boring, which is usually a good sign.

Ask outcome questions, not process questions, and ask for numbers. How uniform is wall thickness across a large body, and what variance is accepted? How is the shrinkage allowance distributed across the geometry? What is the dimensional tolerance on a finished rim across a 33-inch span, and is it measured on a fired piece or inferred from the tool?

Then ask the two questions that most suppliers cannot answer at all. How many units are rejected at each stage, and where? And what changes in the process when a batch starts to drift — is there a measurement that catches it, or does the factory find out from a customer?

A supplier who answers those in numbers is controlling the process. One who answers them in adjectives is not, and the variance will surface at your installer rather than at the factory.

This is the single most consequential line in a supply agreement, and it is usually left vague. A sampled inspection tells you what a batch probably contains. A per-unit inspection tells you what is actually in the carton, which is a different kind of promise — and it is what several serious fireclay producers now advertise: every unit checked for glaze integrity, dimensional accuracy and water tightness before packing.

Per-unit inspection on a large fired ceramic body is expensive and it is not universal. So ask directly, and ask what happens to the pieces that fail. A factory that repairs and re-passes a unit, and a factory that scraps it, produce two different products from the same line.

The answer also tells you how the supplier thinks about claims. If inspection is per unit and records are retained, a later complaint can be traced to a batch and answered with evidence rather than negotiation.

A sample proves that the shape can be made. It does not prove that the tenth container will match it. The useful commitment from a supplier is not the sample — it is that nothing scales until you have held the real thing, and that the approved sample defines what ships, with no substitution afterwards.

That commitment has a physical prerequisite. To promise that the approved finish is the finish on the production run, a factory has to control its own glaze line and its own firing, rather than buying glazed bodies in from a third party. If the glaze comes from outside the building, the promise becomes an aspiration.

Where a golden sample is approved, make it a fired production piece that has been measured and recorded — not a hand-finished presentation sample that no production run will ever reproduce.

More than most buyers assume. Dimensional consistency is a claim that can be tested cheaply before a programme is committed, because the evidence is documentary and the measurement is repeatable by anyone.

The protocol has four parts: measurement on fired pieces rather than greenware; coordinate measurement across the full span of the rim rather than a single point; a stated inspection frequency per batch rather than a one-off approval; and retention of records against a batch number so a later complaint can be traced. Add photographic evidence of the packing, taken with the carton label in frame, and you can attribute a transit finding to a specific carton instead of a whole shipment.

Several decisions made at specification stage remove risk later. A reversible apron front — fluted on one face, smooth on the other — covers two kitchen styles from a single line item, which matters commercially but also means one tool serves two markets. Rounded inner corners, in the region of a 20 mm radius, eliminate the tight internal angle where dirt collects, which is a service-cost decision rather than an aesthetic one.

Drain position is worth as much attention as bowl size. A rear-set drain moves the plumbing back and leaves the space directly under the basin usable for a disposal or for storage. A generously sloped bowl floor empties properly; a flat-bottomed bowl will pool, and on a hand-formed body that pooling is a characteristic of the design rather than a defect — so decide it now, not after the first complaint.

And a workstation ledge, which turns the sink into a prep surface with a sliding track, costs roughly one and a half to two inches of bowl width per side. In a narrow kitchen that is a good trade. In a wide one it is often not.

Why do large sinks warp more than small ones? Because the absolute distortion scales with the size of the piece. The same percentage of shrinkage that is invisible on a 12-inch basin becomes a visible rock in the rim of a 36-inch sink.

Does a heavier sink mean a better one? No. Weight is a cost and a handling risk. A dense, uniform wall section is the quality signal, and you verify that with measurements rather than with a scale.

Why did my installer need to shim the sink? Almost always because the rim was not flat across its span, or because the countertop was templated from a drawing instead of from the sink. Both are preventable, and both are decided before the sink ships.

What tolerance should I specify on rim flatness? Specify it as a number across the full span, measured on a fired piece, rather than as a nominal dimension. Then ask how it is measured, because a tolerance nobody can reproduce is not a tolerance.

Does the glaze cover the whole sink? No, by design. The mounting rim and the seating surfaces are left unglazed so they can be ground flat and bonded properly. That is a feature to confirm, not a defect to report.

How long should drying take? Slow enough that thick and thin sections lose water at the same rate. Industry schedules for large fireclay sinks run to several days of air drying plus a controlled dryer cycle — which is why very short lead times on very large sinks deserve a second question.

Can you make a non-standard size? Yes, and it is a tooling conversation rather than a catalogue one. Sizes are produced to drawings, and adapting an existing tool is generally faster and cheaper than opening a new one — which is the first thing to establish with any supplier.

What is the one thing to verify first? The dimensional report on fired pieces, with the measuring points marked on the drawing. Everything else in the relationship is easier once that exists.
